Two Roll Mill

Product Details:

Lab Two Roll Mill Manufacturer

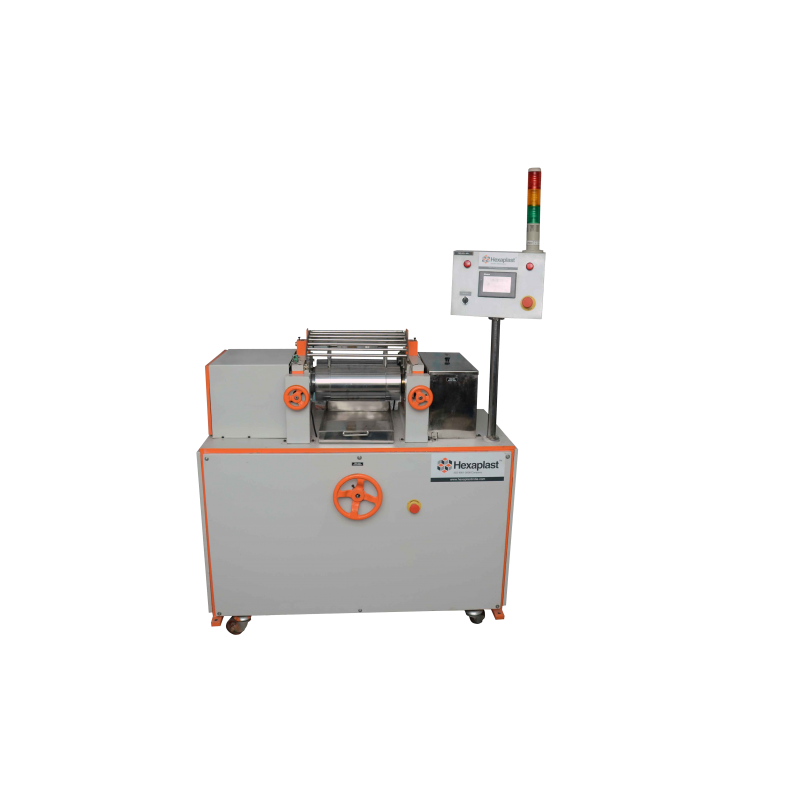

HEXA PLAST Two Roll Mill with fixed speed and friction is laid out for constant working conditions. The machine is available with roll diameters of 150 mm. (as per requirement).

The rolls are driven by a geared AC Motor. The rear roll is driven by spur gears for a constant friction. Modifications for speed and friction are possible to meet individual requirements within certain steps.

The rolls are aligned in rigid frames. The rear roll is in a fixed position for good access to the rolls. The front roll can be moved with a hand shaft. The central adjustment ensures parallel movement. The working width is laid out for both plastics and rubber processing.

The drive system is equipped with a knee-actuated switch for emergency stop. Opening to the necessary safety distance can be done by hand however without turning of the rear roll.

The rolls are made of corrosion resistant steel and surface hardened. A central lubrication system combined with high-temperature resistant seal ring sallow low maintenance operation.

The electrical heating energy is provided by cartridges. Heat distribution is controlled in three different zones to equalize difference over the roll.

The machine is equipped with a contractor control system. Roll temperature will be controlled with digital controllers. With the operating units mounted in an adjustable panel the machine can be operated from both sides.

Electric and drive system are incorporated in the machine frame with easy access for maintenance. The machine will be delivered with integrated controls and needs supply connections only.

SPECIFICATION

Technical Data	Model : HP – TRM-I
Roll Diameter	150 mm
Roll Width	350 mm
Heating Power/Roll	5 kW
Roll Speed Fixed	18 / 23 RPM
Driver Power	3.7 kW
Roll Temperature	Upto 300º C
Power Supply	1 Phase, 230 V, AC, 50 Hz.
