Two Axis Position Controllers
Product Details:

Brand	Customized
Current	1A
Phase	Triple Phase
Voltage	220V AC
Mounting Type	Panel Mount, Screw Mount, Wall Mount
Features	All
Country of Origin	Made in India
Place of Origin	Mumbai

We are presenting a wide array of Two Axis Position Controllers. The Two Axis Position Controllers offered by us is recommended by the clients for their hassle free performance. Highly resistant to corrosion these Two Axis Position Controllers are known for their availability in various specifications.

Features:

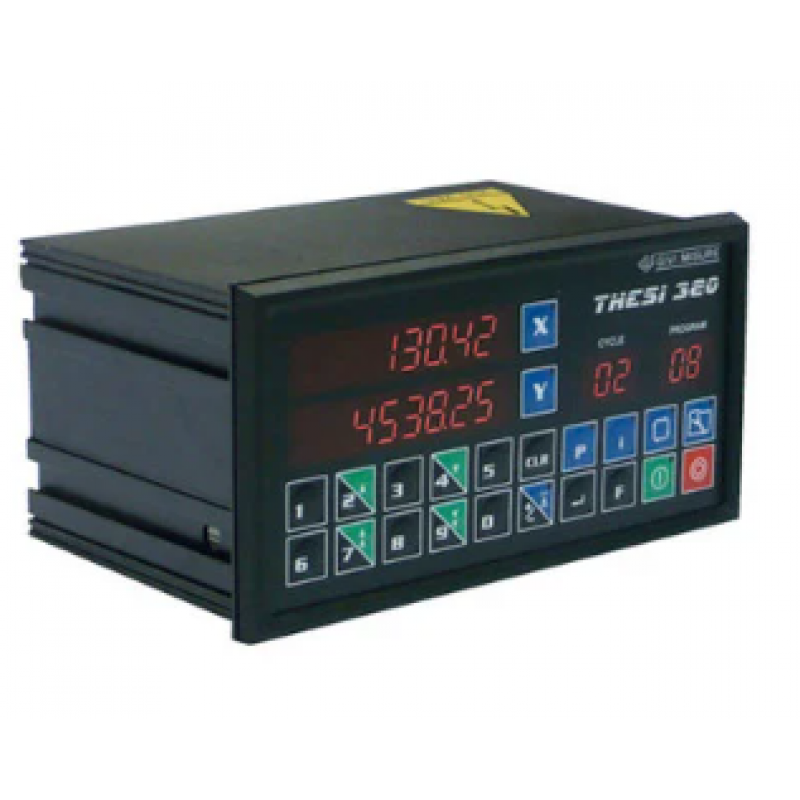

THESI 320 position controller can control shifting and positioning of two axes in 3 different operating modes:

MANUAL or SEMI-AUTOMATIC by keyboard
AUTOMATIC on the basis of a memorized program
End of program output
Independent axes as for configurations and parameters
3 generic auxiliary inputs
Memorization of up to 99 PROGRAMS with 20 positions each. Up to 99 repetitions can be matched to each position (the program cycle is composed by the position and its respective repetitions)
90 Vac to 230 Vac power supply or 24 Vac power supply with selector
Manufactured with 16 bit microcontroller, 256K FLASH and 8K RAM memory in single-chip mode
Optoisolated inputs
START, STOP, INCREASE CYCLE, DEVIATION, PRESET.
Voltage-free contact outputs
OK POSITION, ENABLING WITH CONTROL INTERLOCK
Feed/Back, Slow/Fast
± 10 Vdc analog output
Feed/Back, Slow/Fast
Can be installed on bench or built in
