Tunnel Diode Characteristics Apparatus

Tunnel Diode Characteristics Apparatus

Usage/ApplicationLaboratory
Model Name/NumberAE 237
Packaging TypeCorrugated Box
PowerAC Mains
TypeDigital
Display Typedigital

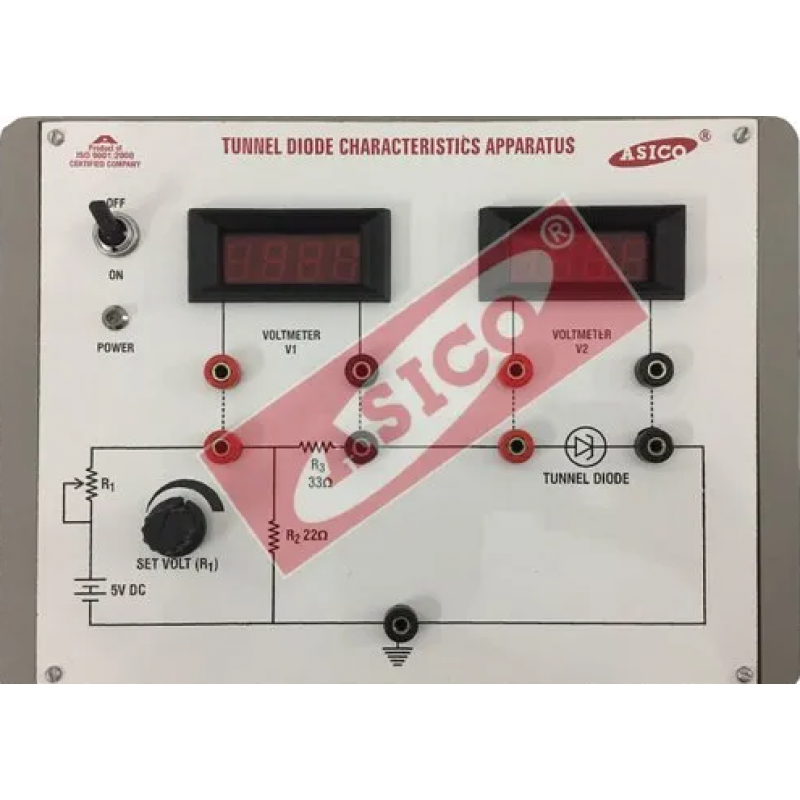

Tunnel Diode Characteristics Apparatus (AE 237 )

Objective :

To Plot V-I Characteristic & Resistance Characteristic of Tunnel Diode in Forward Bias

Technical Specifications :

  • Inbuilt Fixed DC regulated power supply
  • Output Voltage : +5VDC
  • On Board Digital Panel Meter
  • Digital panel meter for measuring
  • V1 : Voltage across Resistance R 3
  • V2 : Voltage across Tunnel Diode
  • Potentiometer & Diode
  • Potentiometer : R1 (Current control)
  • Tunnel Diode : IN 3717
  • High quality bekelite used as front panel & mounted on light weight shock proof plastic cabinet
  • Symbol diagram printed on bakelite Front Panel & all important test Points are brought out on front panel
  • Power requirement : 230 VAC 10%, 50Hz.
  • Weight : 1.5Kg Approx.

Standard Accessories :

Power chord, Patch chords & Instruction manual.



Additional Information:

  • Delivery Time: ready stock
  • Packaging Details: 1 box
