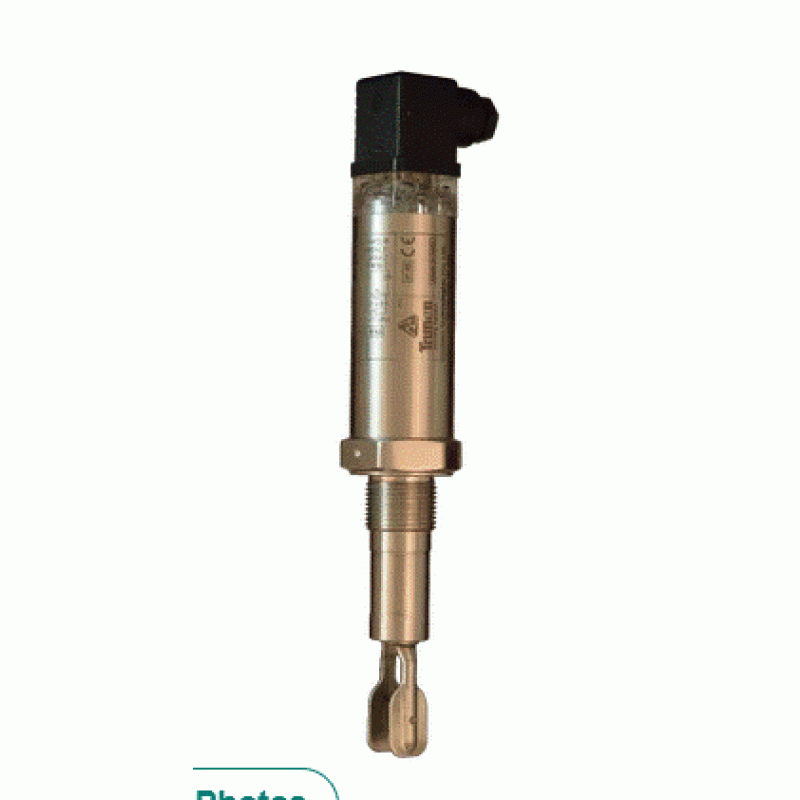

Tuning Fork Level Switch
Product Details:
In line with clients' diverse requirements across the country, we are offering an excellent range of Intelligent Admittance Level Limit Switch. This switch is precisely used as to measure level. Provided switch is manufactured by our skilled professionals using optimum quality raw material and progressive technology in conformance with defined quality standards. Being a quality-oriented organization, we confirm our clients that the provided range is excellent on counts of quality.
Features:
Highly-accurate
Easy to install
Fail safe function
Housing | Cast aluminum, Weather-proof, Stoving enamel painted, suitable for back panel/wall mounting. |
Cable Entry | 3 Nos. of ½” BSP/NPT/NG20 |
Ambient Temperature | 20 ºC to + 60 ºC. |
Mains | 110/230 V AC (-10 to + 10%) 50 Hz (as specified in order). |
Power Consumption | 5 VA approx. |
Indication (Switching) | Red LED for each level alarm, red LED for fault alarm, flashing green LED as heart-beat for healthy condition. |
Indication (Calibration) | LCD, one digit for mode field and two digits for data field. |
Response Time | 0.2 Second. Typical. |
Switching Delay | Programmable up to 99 Second. For probe covered/uncovered condition for each set point. |
Connection to | 2-core ordinary cable, |
Electronic Insert | Having max. resistance of 25 W per core. |
Initial Capacitance | 20 to 1200 pF. |
Switching Hysteresis | Approx. 0.5 pF at initial |
Single Point Operation | Capacitance of 30 pF. |
Switching Hysteresis | Programmable over |
Two Point Pump Control | Entire setting range. |
