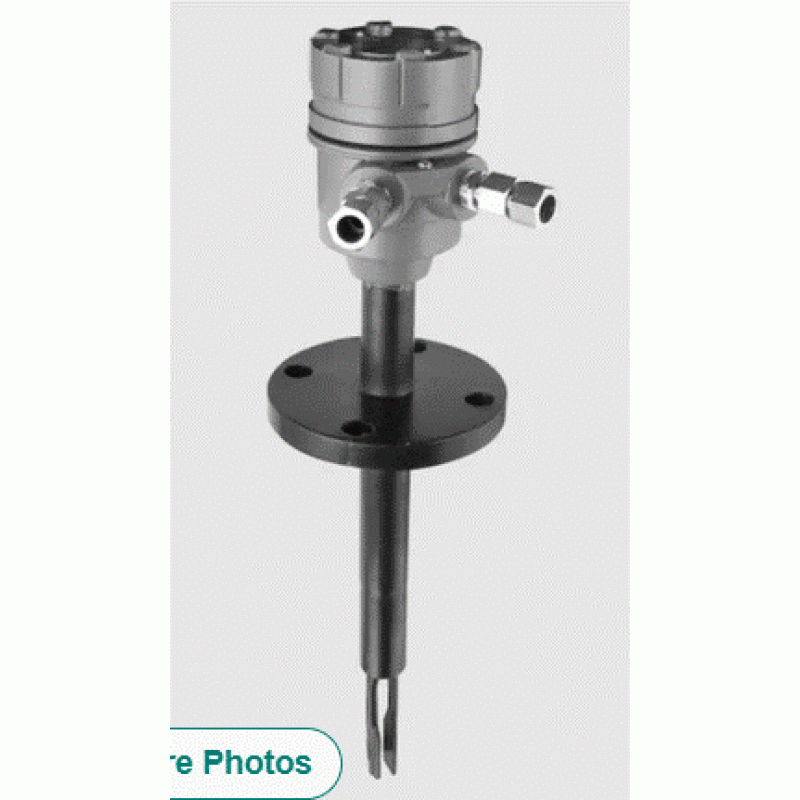

Tuning Fork Level Switch For Solids
Product Details:
Backed by a diligent team of professionals, we have been able to manufacture, export and supply a wide range of Capacitance Level Switch. We manufacture the provided range by utilizing advance machines, modernize technology and superior quality raw material. To ensure defect free, the entire switch is rigorously tested upon a series of parameters. Moreover, we offer the switch in a wide range of specifications as per the requirement of our clients. You can calibrate the level limit evaluation unit far away from the probe. This level switch uses ordinary 3 core cable for interconnecting the electronic insert with the evaluation unit. A variety of built in multi-point evaluation units is available to reduce the number of discrete controllers thereby reducing the overall cost. The fail-safe high/low selection feature is available as a standard. This systems is economical to install and you can even have it in circular enclosures for your specific requirements.

Housing	Cast Aluminum, Weather proof, back panel/wall mounting
Cable Entries	3 Nos. / 2 Nos.
Max. Amb. Temp.	- 20 ºC to + 60 ºC.
Power Consumption	5 VA approx.
Mains Voltage	230 V or 110 V AC (-15% to +10%), 50 Hz; 24 V AC/DC; 90 to 260 V AC universal power supply. (to be specified while ordering).
Relay Output	One/two sets of potential free change over contacts rated at 230V AC 6A, 50 Hz for non-inductive loads per set point.
Fail-Safe Mode	Max. or Min. Field selectable.
Indication	Red LED for alarm, Green LED for normal, Yellow LED for system fault.
Response Time	0.2 Second
Switching Delay	Adjustable from 0.5 to 20 Second. for probe covered or uncovered condition.
Connection to Electronic Insert	3 - core unscreened cable.
Initial Capacitance	0 to 290 pf. in 3 overlapping ranges. (For single point switching) 0 to 1200 pf. in 3 overlapping ranges. (For pump control & multi point switching)
Switching Hysteresis	0.5 pF. typical. (For independent switching) & Continuously adjustable over the entire range. (For pump control switching)
