Tilting Bed Flow Channel Apparatus

Product Details:

SSaini science industries manufacture of TILTING BED FLOW CHANNEL

Technical Description:

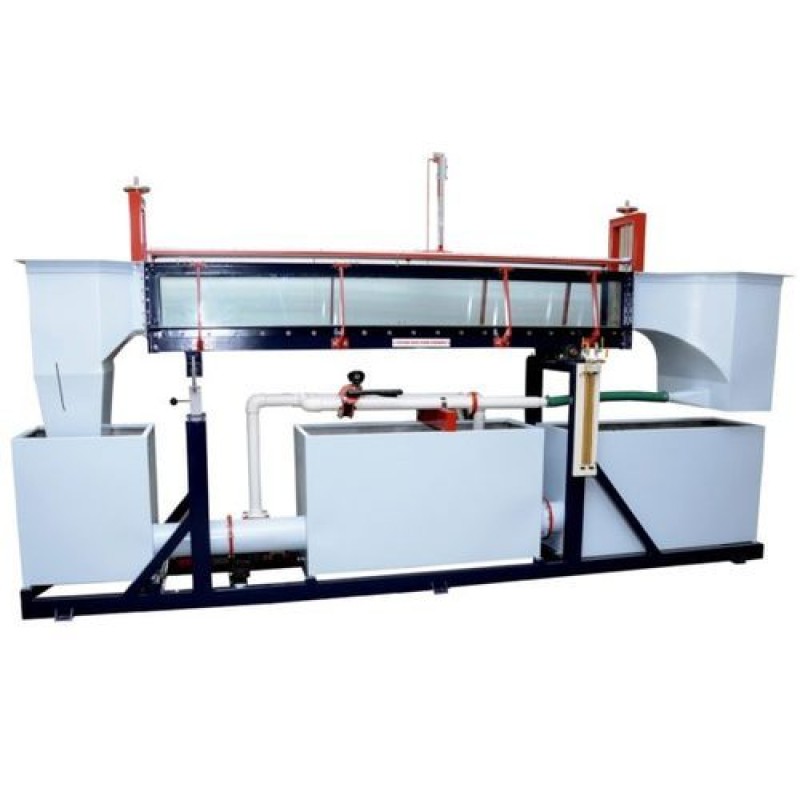

This apparatus consists of a Flow channel. Channel is fabricated from transparent Toughened Glass and Stainless Steel together. The equipment is designed to study the various phenomenon of flow with the help of various types of blocks, gates, weirs, and other many types of accessories (Optional). The channel section is transparent by which user can observe the various flow patterns of fluid in the channel and photographs can be taken. These glass panels are sealed with the stainless steel bed. This channel is floor mounted. Instrument rail is provided along the entire working length of the flume. A scale is provided along with the rail. A pointer gauge is provided to measure the depth of flow, that can move on the rail. At the inlet of the flume an inlet tank with stilling and smoothing device is provided for obtaining the excellent velocity profile in the test section. At the discharge side a gate is provided which have an adjustable height. This gate maintains the operating water levels for the flume. This flume is tilted using a jacking system which has one jack. An arrangement has been done to calculate the slop of channel. The flow channel is self-contained re-circulating unit provided with sump tank, centrifugal pump, and control valve. Water is circulated through the channel by centrifugal pump. The pump draws water from sump tank to inlet tank of flume and return back to sump after passing through the channel.
Learning Objectives/Experiments:
To observe the Hydraulic Jump phenomenon.
Study of velocity distribution in open channel and to find the correction factor.
V-NOTCH WEIR
To calculate discharge co-efficient of the V-notch.
RECTANGULAR NOTCH WEIR
To calculate discharge co-efficient of the rectangular notch.
RECTANGULAR OVER SHOT WEIR / BROAD CRESTED WEIR.
To calculate discharge co-efficient of weir.
RECTANGULAR SHARP CORNERED WEIR
To calculate discharge co-efficient of the weir.
RECTANGULAR STREAMLINED WEIR
To calculate discharge co-efficient of the weir.
VENTURIFLUME
To calculate discharge co-efficient of the venturi flume.
STANDING WAVE FLUME
To calculate discharge co-efficient of the Flume.
HUMP
Study of flow characteristics over a hump.
SPILLWAY
To observe flow pattern over the spillway.
SLUICE GATE
To observe discharge under a sluice gate.
CRUMP WEIR
To observe discharge over a crump weir.
SYPHON SPILLWAY
To observe discharge through syphon spillway.
ARTIFICIAL ROUGHNED BED
To observe discharge through roughned bed.

PARSHALL FLUME

To observe discharge over a parshall flume.
Required for Operation:
Electricity supply: Single Phase, 220V AC, 50 Hz, 5-15 Amp combined socket with earth connection. Earth voltage should be less than 5 volts.
Water Supply: Initial fill.
Laboratory drain.
Technical Specifications:
Flow channel size : 2.5m, 5.0m, 7.5m, 10.0meter
Flow Channel
Materia l : Toughened Glass and Stainless Steel
Width : 150 mm
Depth : 300 mm
Water Circulation : Centrifugal Pump, compatible capacity.
Flow Regulation Valve : Hand wheel operated butterfly Valve
Pointer Gauge : Provided.
Sump Tank : Suitable Capacity. Tanks will be made of Stainless Steel.
The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure
