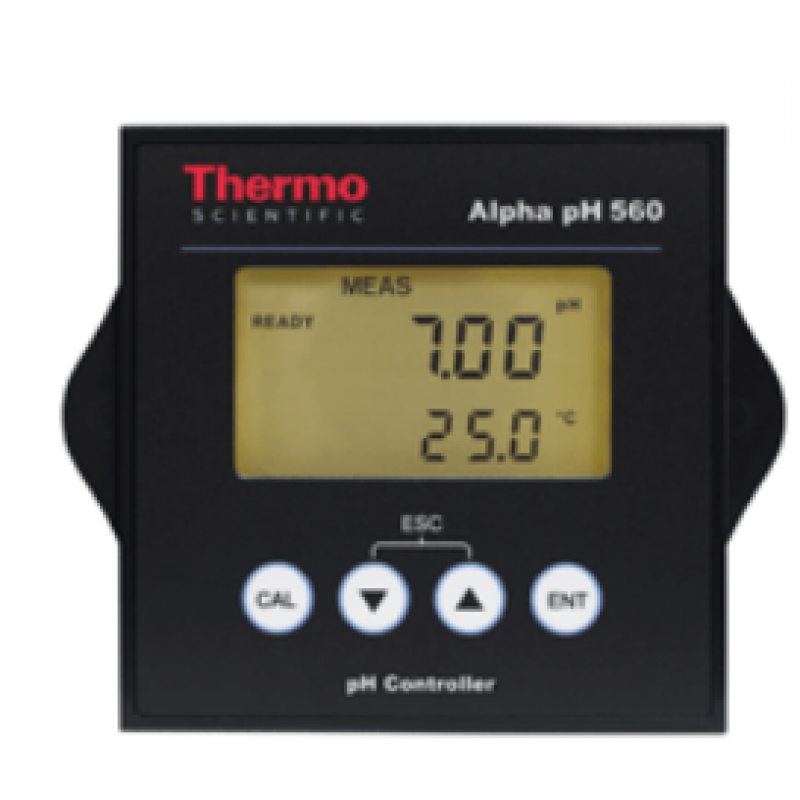

Thermo Scientific Alpha pH 560

Product Features Alpha pH 560 limit control meter simplifies the task of controlling several processes with two set-point relays. Separately adjustable high and low hysteresis ensures chatter-free signals, preventing false alarms and unnecessary down-times. :: Separately adjustable High/Low hysteresis with user-adjustable time delay of up to 2000 seconds for minimal chattering and false alarm     :: Two switching contacts as set-point relays     :: Large UV Light protected LCD with backlight     :: Symmetrical Mode option gives clear, accurate readings in electrically noisy ambient     :: Push button operation for easy set-up programming and customization     :: US and NIST auto buffer recognition for quick, easy calibration     :: Reliable, accurate measurements at different temperature with Automatic Temperature Compensation

Specifications

Product Specification	Description
pH
Range	0.00 to 14.00 pH
Resolution	0.01 pH
Accuracy	±0.01 pH
ORP
Range	-1000 to 1000 mV
Resolution	1 mV
Accuracy	±1 mV
Temperature
Range	-10.0 to 125.0 °C / 14.0 to 157.0 °F
Resolution	0.1 °C / 0.1 °F
Accuracy	±0.5 °C / ±0.9°F
Sensor	Pt100; 2 or 3 wire
Compensation	Auto/manual
Controller
Set Point 1 (SP1) / set Point 2 (SP2)	0.00 to 14.00 pH
Switching pH Hysteresis	±1.0 pH
Switching ORP Hysteresis	10 to 100 mV
Function (Switchable)	Limit control; off
Pickup/Dropout Delay	0 to 2000 sec
Contact Outputs	2 SPST relays
Switching Voltage/ Current Power	1/8 HP: at 125 VAC / max. 0.74 A / max. 93 VA 1/8 HP: at 250 VAC / max. 0.37 A / max. 93 VA
Electrical Data And Connections
pH/ORP Input	2-pin terminal; asymmetrical/symmetrical
Connection Terminal	2-pin & 8-pin terminal, detachable blocks; DC jack
Display
LCD	7 segments display with symbols for status information
Backlight	Yes (on/off selectable)
Power Supply
Input	12 to 24 V DC or 9 V DC
EMC Specifications
Emitted Interference	According to EN 61326
Immunity To Interference	According to EN 61326
Environmental Conditions
Operating Temperature Range	0 to 40 ºC
Max. Relative Humidity	80 % up to 31 ºC decreasing linearly to 50 % at 40 ºC
Mechanical Specifications
Dimensions (WxHxD)	96 x 96 x 66 mm
Weight	210 g (unit) / 310 g (packed)
Ingress Protection	IP65
