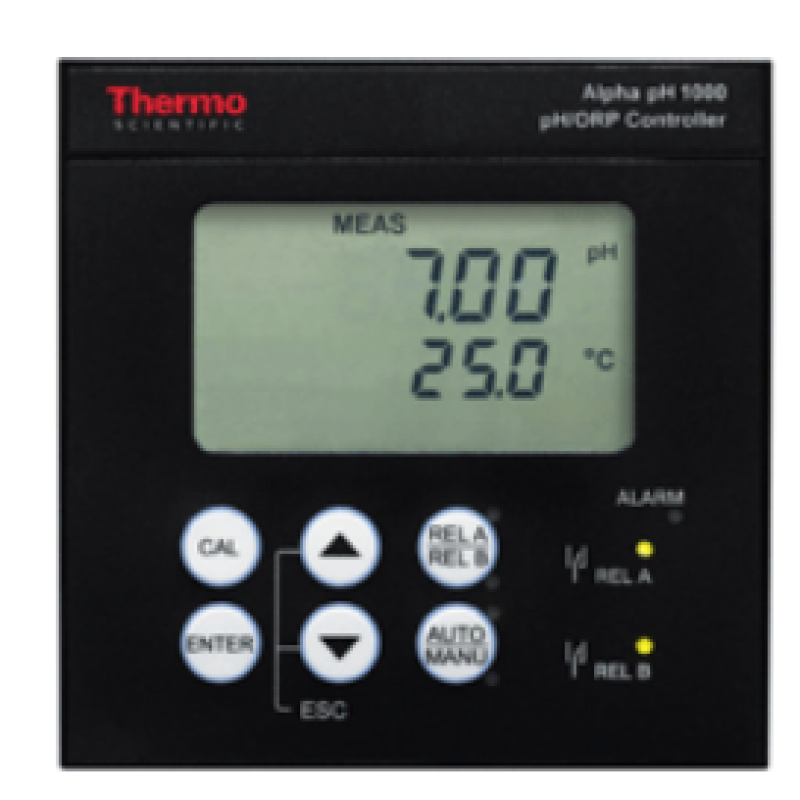

Thermo Scientific Alpha pH 1000

Product Features The Alpha pH 1000 controllers/transmitters combines consistent performance and sophisticated control functions with user-friendly features. Meters come with seven preset buffer values for quick, accurate auto-calibration; electrode offset function allows direct reading corrections without needing to remove electrode from the control system. Alarm delay and individual set-point hystereses in limit control mode prevent chattering, false alarms, and uncecessary down time. For finer control, Alpha pH 1000 offers proportional pulse length control and proportional pulse frequency control, in addition to basic limit control. :: 2-in-1 controllers/transmitters can be configured to measure either pH or OPR (mV or %)     :: Auto-calibration with choice of NIST or USA buffer selection. Electrode slope and offset is displayed after each successful calibration     :: Symmetrical mode option for clear, uninterrupted pH readings in electronically noisy environment     :: Antimony mode option for use with antimony electrodes in applications that involves corrosive Hydrofluoric Acid     :: Option of Auto or Manual Temperature Compensation. Three-wire system compensates for cable-length resistance errors     :: Galvanically-isolated, scaleable 0/4 to 20 mA output for high-quality output on peripheral devices     :: Alpha pH 1000 limit/proportional controller also offer two additional features: wash function for scheduled electrode wash, and alarm relay function to alert when measurement crosses the set points

Applications
General: Useful for any batch or on-line type application that requires accurate pH or ORP control.
Water Purification/Treatment: Use for batch and on-line control of incoming process water, rinse water treatment, recirculating system and waste water treatment.
Industrial: Ideal for chemical processing, food processing. aquarium, pharmaceutical, hydroponics and waste control industries.
Regulatory: Hook to recorder to document data for regulatory compliance.
Specifications

Product Specification	Description
pH
Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	±0.01 pH
ORP
Range	-1000 to 1000 mV / 0 to 100.0 %
Resolution	1 mV / 0.1 %
Accuracy	±1 mV / ±0.2 %
Temperature
Range	-9.9 to 125.0 ºC
Resolution	0.1 ºC
Accuracy	±0.5 ºC
Sensor	Pt100 / Pt1000 (jumper selectable); 2 or 3 wire
Compensation	Auto/manual
Set Point And Controller Functions
Set point 1 (SP1) / set point 2 (SP2)	0.00 to 14.00 pH or -1000 to 1000 mV or 0 to 100 %
Switching pH Hysteresis	0.1 to 1 pH
Switching ORP Hysteresis	10 to 100 mV / 1 to 10.0 %
Function (Switchable)	P control (pulse length/pulse frequency); limit control
Adjustable Period With Pulse Length Controller	0.5 to 20 sec
Adjustable Period With Pulse Frequency Controller	60 to 120 pulse/min
Pickup/Dropout Delay	0 to 2000 sec
Contact Outputs	3 SPDT relays
Switching Voltage/ Current/Power	Max. 250 VAC / max. 3 A / max. 600 VA
Alarm Functions
Function (Switchable)	Steady or fleet (pulse)
Wash Cycle	0.1 to 199.9 hr
Wash Direction	1 to 1999 sec
Pickup Delay	0 to 2000 sec
Switching Voltage/ Current/Power	Max. 250 VAC / max. 3 A / max. 600 VA
Electrical Data And Connections
Transmitter Function	0/4 to 20 mA scalable outputs for pH/ORP, galvanically isolated
Hold Function Switch	To freeze output current and deactivate control relays
Load	Max. 600 Ohm
pH/ORP Input	BNC (1012 impedance); asymmetrical/symmetrical
Connection Terminal	5-pole, 17-pole terminal, detachable blocks
Display
LCD	7 segments display with symbols for status information
Power Supply
Input	110 VAC (jumper selectable) ; 48 to 62 Hz ; max. 7 VA (For TSCTP1001)	220 VAC (jumper selectable) ; 48 to 62 Hz ; max. 7 VA (For TSCTP1002)
Main Fuse	Slow-blow 250 V / 100 mA
Pollution Degree	2
Transient Overvoltage Category	II
EMC Specifications
Emitted Interference	According to EN 50081-1
Immunity To Interference	According to EN 50082-1
Environmental Conditions
Operating Temperature Range	-10 to 50 ºC
Max. Relative Humidity	80 % up to 31 ºC decreasing linearly to 50 % at 40 ºC
Mechanical Specifications
Dimensions (WxHxD)	96 x 96 x 175 mm
Weight	700 g (unit) / 800 g (packed)
Ingress Protection	IP54 (front panel)
