Thermal Imaging Solutions
Product Details:

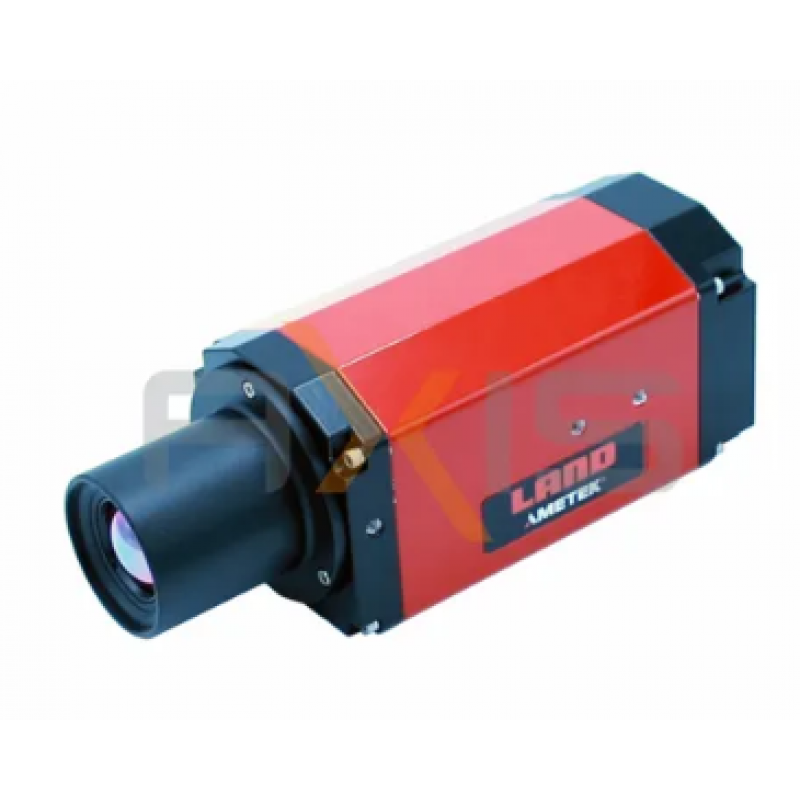

Brand	AMETEK Land
Model	LWIR-640
Temperature Range	0-500 DegreeC / 32-932 DegreeF & 100-1000 DegreeC / 212-1832 DegreeF
Resolution	640 x 480
Accuracy	1.5% or 2 DegreeC of reading
Dimensions (With Standard Lens And Battery)	80 x 80 x 222 mm (max) / 3.14 x 3.14 x 8.7 in (including lens)
Power Rating	12 to 24 V DC, +/-10% 12W / IEEE 802.3 at PoE+

GENERAL DESCRIPTION:LWIR-640 provides a full temperature measurement range of 0 to 1000 °C (32 to 1832 °F) in two ranges with a choice of different optics and lenses.An integrated webserver with multiple I/O options enables the camera to be used autonomously or easily integrated into new or existing process control systems.The pixel resolution of 640 x 480 pixels and the high thermal resolution deliver uniquely clear and detailed thermal images and videos, at up to 60 Hz frame rate.Advanced IMAGEPro image and data processing software offers real-time analysis of thermal images, giving users an exceptional level of understanding and control of their process. It also enables monitoring and configuration of up to 16 imagers.FEATURES & BENEFITS:
INDUSTRIAL THERMAL IMAGER - For use in harsh industrial and
environmental conditions, providing continuous reliable temperature measurements
MEASUREMENT ACCURACY & REPEATABILITY - Unmatched image
homogeneity across the entire image
ADVANCED IMAGE RESOLUTION & QUALITY - High pixel and thermal resolution, providing 640x480 camera pixels and NETD of < 50 mK (0.05 °C)
EXTENSIVE ACCESSORIES - Hazardous location and general purpose enclosures for cooling and protection plus further
mechanical and electrical accessories available
APPLICATIONS:
Automation
Hot Spot Detection
Flare Stack Monitoring
Food and Mineral Processing
Medical Imaging
