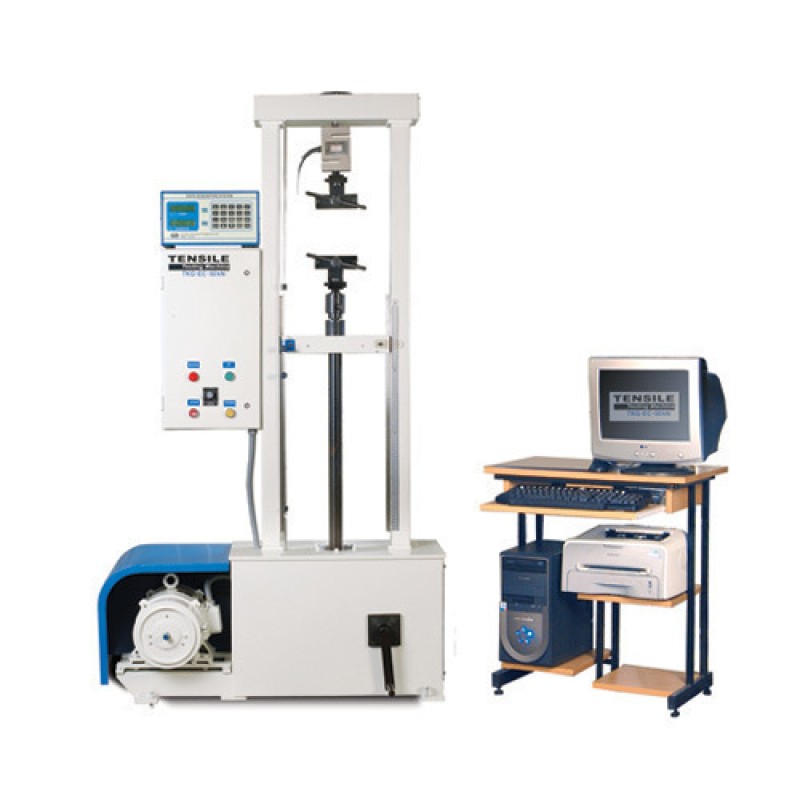

Computerized Tensile Testing Machine

Product Details :

Computerized Tensile Testing Machine MSW-001TTM:

MAIN FEATURES Variable speed drive with DC/Servo drives options. Provision for automatic identification & thereby interchangeability of load cells. Provision of different clamping devices to suit specific test requirement. Safely interlock by enf limit switches & by overload sensing. Load Cells - Universal load cells of following capacities. 50N, 100N, 250N, 500N, 1kN, 10kN, 25kN, 50kN, 100kN, Any other load cell can be offered on the requirement. Extensometers with Electronic Interface & Evaluation Software.M-2 Stain gauge type with 2mm extension and gauge length 25mm & 50 mm. It measures important parameter like 0.1%, 0.2% proof stress and usable up to dia/flat 40 mm Long travel Extensometer for rubber test. Offers following extensometers with electronic interface & evaluation software .M-2 Stain gauge type with 2mm extension and gauge length 25mm & 50 mm. It measures important parameter like 0.1%, 0.2% proof stress and usable up to dia/flat 40 mm Long travels Extensometer for rubber test. Measuring System Option -1 Measuring System MP - Microprocessor based system with digital display of load and displacement/extension it is having membrane keyboard for entering necessary input data and for reading results, Printout of Load v/s. Displacement or Stress v/s. The strain is available as the standard feature. Option Measuring System PC - It is PC based card system where two PCB's are directly fitted into PC slot, Load & Displacement are shown on the computer screen, Input data is feed by means of the computer keyboard. The test is automatically completed & test result is displayed on the computer screen.

Salient Features :

• Maximum Test load - 5 kN, 10 kN, 20 kN, 50 kN, 100 kN
• Load Measurement - By means of exchangeable strain gauge based load cell

• Load Measuring Range and Accuracy- ± 1 % on indicated load from 2 % to 100% of load capacity

• Maximum Crosshead Stroke-1000 mm without load cell & grips

• Distance between Columns-450 mm

• Drive System Option - DD with DC drive - 1:10 speed ratio 5 - 50 mm / min, 25 -250 mm / min, 50- 500 mm / min (Any other speed range available on request)

• Drive System Option - SD with servo drive - 0.5 mm to 500 mm/min (Any other speed range available on request)

• Power Supply - 230 V AC / 50Hz, 1 Ph for 5, 10 & 20 KN415 V AC / 50Hz, 3 Ph for 50& 100KNOption -1

• Measuring System MP Panel Crosshead Display Resolution - 0.1 mm by means of rotary encode Load range & Resolution - 1 / 10000 from 0 - 40 % of range and 1 / 4000 from 40- 100% of range Option - 0.1mm crosshead Dis. Resolution (0.01 Optional) / Serial Software

• Option 2 - Measuring System PC Crosshead Display Resolution - 0.1 mm by means of rotary encoder Load range & Resolution - + 1 / 25000 Single range.


Additional Information:

• Production Capacity: 10
• Delivery Time: 3 weeks
• Packaging Details: Wooden Box export worthy.
