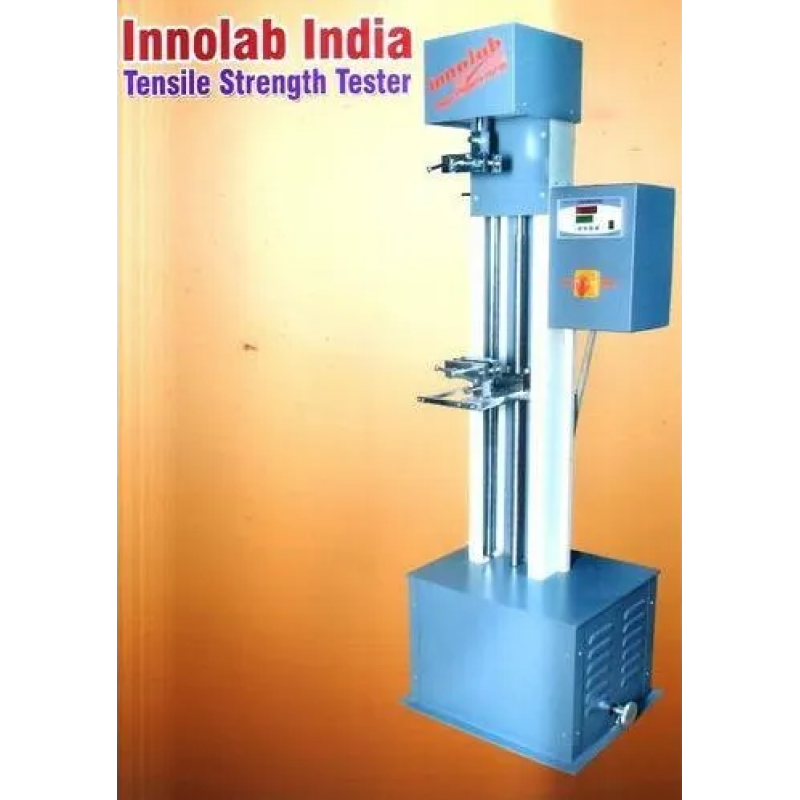

Tensile Strength Tester

Usage/Application	Laboratory
Capacity	0-200 x 0.02 Kg.
Phase	Single phase
Material	Mild Steel
Display Type	Digital
Brand	Innolab India
Frequency	50 Hz
Voltage	230 Volts AC
Speed	300 & 100mm /min.
Grip Separation	Minimum 25 mm and Maximum 900 mm
Least Count	1N / 0.1Kgf
Motor	1/4 HP

Provide a relatively inexpensive way for determining the tensile strength and elongation of a variety of raw materials such as rubber, leather, and fabric plastics, belts wires etceteras. They are based on constant rate of traverse principle, in which one end of the test specimen is held in a stationery grip while the other end is moved at a known fixed speed with the help of a motor gear box and screw arrangement.

In electronic type tensile testers, the load exerted on the stationary grip is measured by a load call and is displayed on a digital indicator. The indicator has a peak force retention memory, which can be recalled to display the maximum load exerted on the test specimen before its failure. An overload protection relay is provided to automatically stop the motor if the load exerted goes above the maximum capacity of the load cell.

The movement of the lower grip is indicated on a digital indicator with pre-set arrangement to automatically stop the motor at any desired separation of grips.

Changing the belt on a set of V belt pulleys can change the speed of traverse of the lower grip. An arrangement of moving the lower grip manually is also provided.

The frame of the test is fabricated from heavy mild steel sections to give it the required rigidity and strength Various built in safety arrangements such as over load and over travel protection, and automatically stopping of the motor on failure of the test specimen are provided.
The tester is finished in shore blue metallic painting and bright chrome / zinc plating to give it a corrosion resistant finish. The tester is supplied complete with electrical which include micro-switches push buttons, and contactor for safe and convenient operation. A variety of grips suitable for holding different materials or for conducting different tests are available as optional accessories. Arrangement to plot load versus elongation graphs can be provided against specific requirements.
Technical Data of Tensile Strength Tester:

• Load measurement : With the help of load cell and a digital display having arrangement to display the maximum load exerted during the test

• Elongation measurement : Measured between grips on a digital display from 0 to 1000 x 1 mm.
