Tablet Hardness Tester
Product Details:
We are also involved in offering a premium quality of Tablet Hardness Tester which are made with the finest quality material under keen observation of our highly experienced staff. Moreover, these products are offered on a competitive price.
We are looking Queries from MP Regions mainely.

Features:

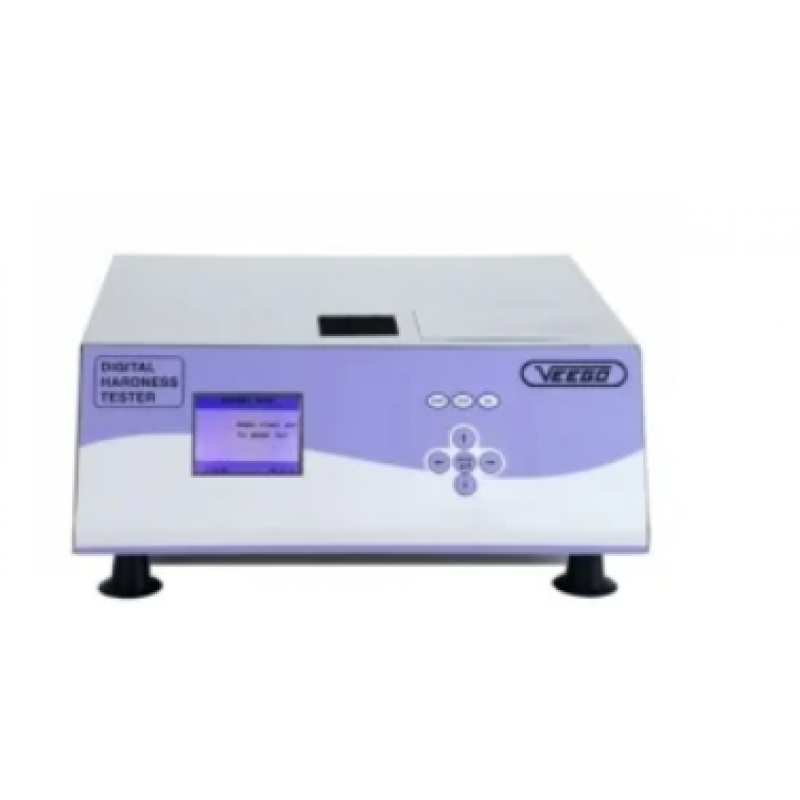

VDIGITAB is a Digital Tablet Hardness Tester
It measures the force required to break a tablet by a diametric compression test
It is a horizontal loading mechanical strength testing machine
Equipped with microcontroller based circuitry, specially designed to measure Hardness, Diameter and Thickness of the tablets
Measuring units for Thickness and Diameter: mm (Millimeter) or IN (Inches) hardness selectable in either Newton (N), kilopond (kp) or Strong Cobb (Sc)
Provides connectivity to any balance via RS 232 interface to weigh the tablets before and after conducting the test
Password protection for secured data storage
Specifications:

Measuring principle: Electronic Load Cell with solid state strain gauges
Display: 3.5 inch color TFT LCD panel
Keypad: Local for simple operations and PS2 Keyboard for other data entry operations
Tablet Width: 0-25 mm
Tablet thickness: 0-10 mm
Tablet Diameter: 45 mm
Measuring Range: 1N- 300 N
Measuring Accuracy: Better than 1 N
Max no of samples/batch: 25 tablets
Interface: RS-232 serial port parallel printer port
Instrument Housing: M.S. fabricated with epoxy powder coated
Calibration Weights: Dead Weights in kg
Weight: 25 Kg
Display: Informative 240 x 64, blue graphic LCD display
Input: Tactile Keyboard + PS-2/PC Keyboard
Printer: Parallel Interface for 80 Columns Dot Matrix Printer
Dimensions (L x W x H): 390 x 390 x 740 mm
Weight: 25 kg
Power: 230 V AC, 50 Hz
