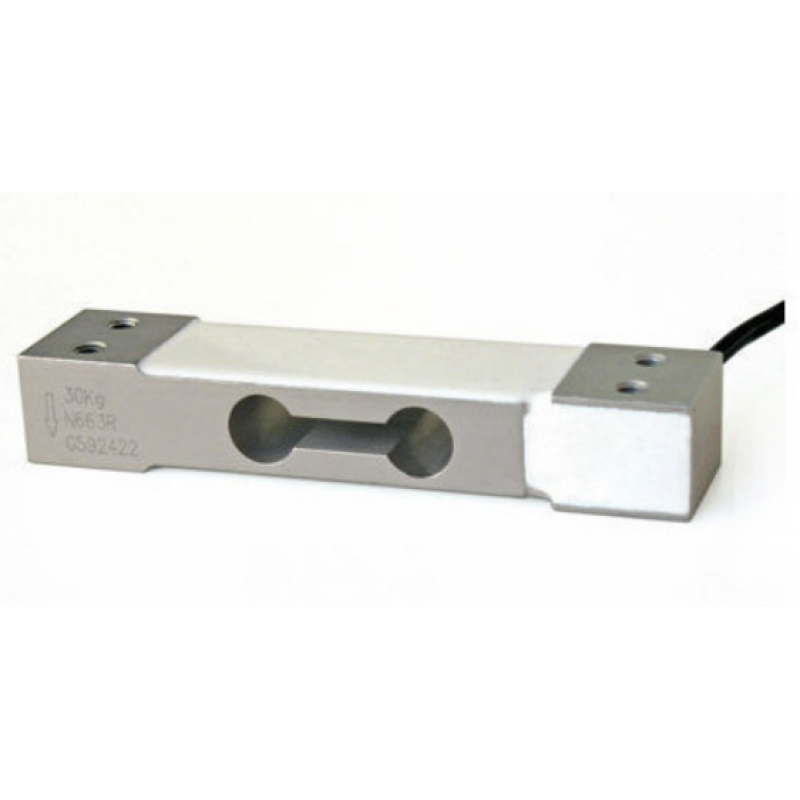

Table Top Load Cells
Product Details:
| Platter size | 150mm x 150mm |
| Safe overload of related capacity | 150.00% |
| Cable length (4 core screened) | 45cm |
| Ultimate overload of rated capacity | 200.00% |
| Output Resistance | 350 +/- 5 ohms |
| Temp Compensated Range | 0-60 Deg c |
With the extensive knowledge and experience in this respective domain we are engaged in offering high quality Table Top Load Cells. We only use high grade raw material and latest technology while manufacturing these load cells. The offered range is widely appreciated all over the nation for their salient attributes. With our quality range, we are able to maintain a strong foothold in markets of this industry.
Features:
- Compact design
- Rust resistance
- Long service life
Other Details :
| Creep (30 minutes) | < ± 0.03% fso |
| Zero balance | ±1.0% fso |
| Input resistance | 400 ± 15 ohms |
| Output resistance | 350 ± 5 ohms |
| Insulation resistance (50vdc) | > 1000 mega ohms |
| Temp compensated range | 0-60ºc |
| Temperature effect on output | < 0.0015% fso/ºc |
| Temperature effect on zero | < 0.0020% fso/ºc |
| Platter size | 150mm x 150mm |
| Eccentric load effect | < 0.02% of fso at 1/3 rated load placed Within the specified sized platter |
| Deflection | < 0.5mm at fso |
