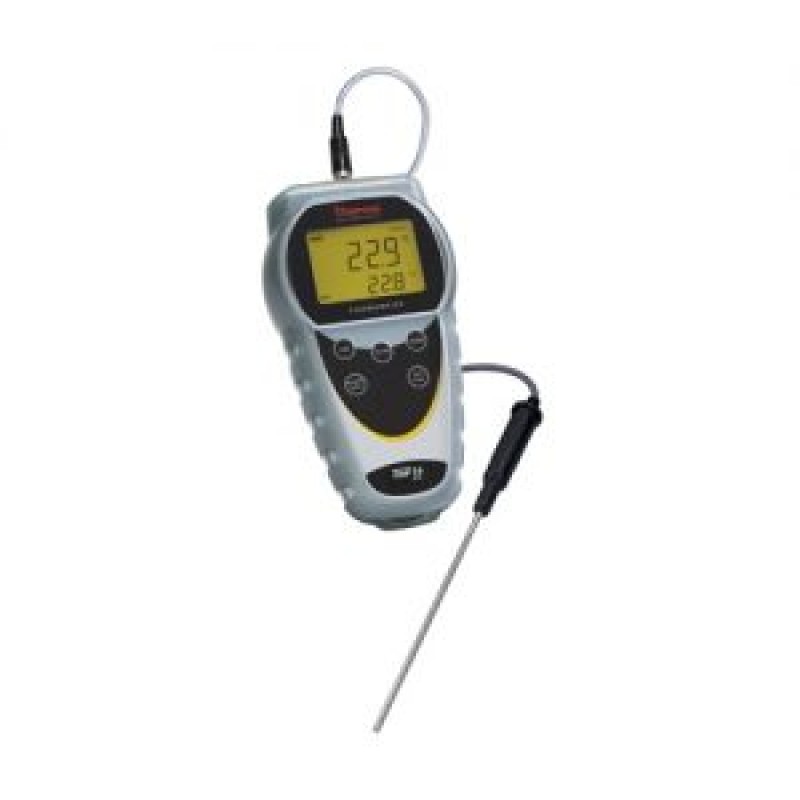

TSTEMP16
Product Features:
- Automatic calibration – just leave electrode in ice water and press ‘CAL’ to calibrate
- Min/max temperature at the press of a key – dual-display shows current and min/max readings
- Large, easy-to-read illuminated display
- High precision measurements from -200.0 to 850.0 °C (-392.0 to 1562 0F)
- Accepts a wide variety of RTD probes
- IP54 splash proof with sealed keypad and ABS plastic housing
- Protective rubber armor ensures a firm grip and doubles up as a table-top stand
Product Description :
| Product Specification | Description |
| Range | -200.0 0C to 850.0 0C (-392 0F to 1562 0F) |
| Resolution | -200.0 0C to 850.0 0C: 0.1 0C -392.0 0F to 999.9 0F: 0.1 0F 1000 0F to 1562 0F: 1 0F |
| Accuracy | -200.0 0C to -100.0 0C (-392 0F to -148 0F): ±2.0 0C (±4.0 0F) -99.9 0C to 199.9 0C (-148 0F to 392 0F): ±0.2 0C (±0.4 0F) 200.0 0C to 850.0 0C (392 0F to 1562 0F): ±2.0 0C (±4.0 0F) |
| LCD | 58 x 40 mm with backlight |
| Min/Max Reading | Yes |
| Auto Shut-Off | 17.5 min (selectable) |
| Hold Function | Yes |
| Stability Indicator | Yes |
| Input | Single (3-pin circular connector (switchcraft TA3F)) |
| Power Requirements | 3 ‘AA’ 1.5 V alkaline; >750 hours (without backlight) |
| Storage | -40 0C to 65 0C (-40 0F to 149 0F); 10 % to 90 % (non-condensing) |
| Dimensions & Weight | 175 x 97 x 42 mm (LxWxT), 267 g (without armor) 180 x 102 x 52 mm (LxWxT), 362 g (with armor) |
| Ingress Protection (With Probe Attached) | IEC-529 IP54 for dust and water-resistant enclosures |
| CE Compliance | EN61326-1/A1: 1998 (EU EMC Directive) |
| Probe | Probe to be ordered separately |
