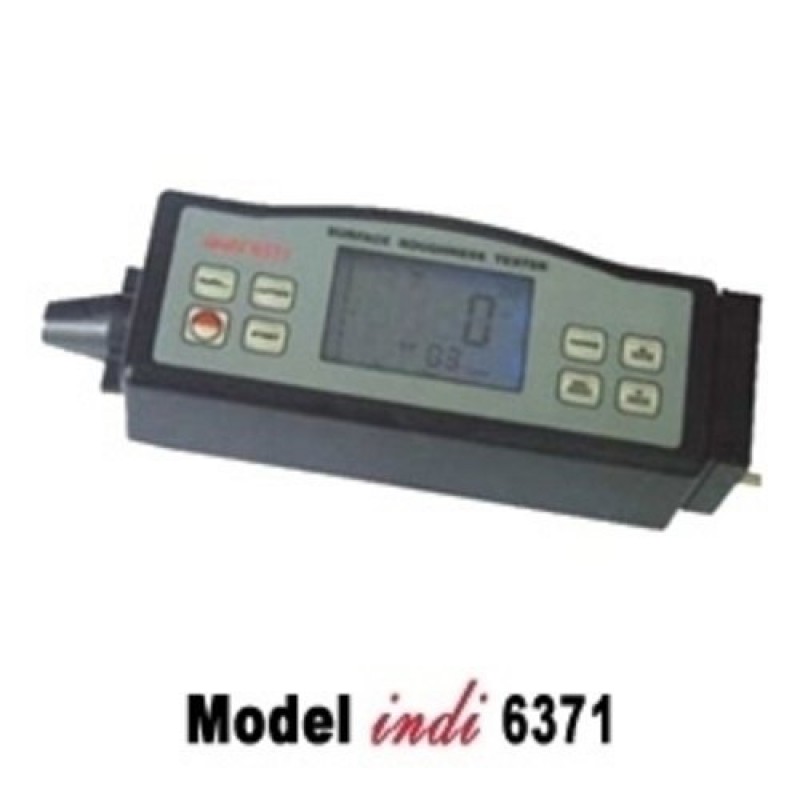

Surface Roughness Tester
Product Details:
Shelf Life | 12 Months |
Brand | Source 1 |
Color | Gray |
Frequency | 50 Hz |
Voltage | 240 V |
Power source | Electric |
Owing to the immense experience and a competent team of personnel, we are able to offer Digital Roughness Tester. The offered assembly of roughness testers is made utilizing superior grade raw material and modern machinery in strict compliance with the international quality norms. Along with this, the offered range of roughness testers is ideally utilized for finding the roughness of the surface.
Features:
- Simple operation
- Light in weight
- Displays waveforms on the color LCD
- Compact body
Specifications : |
Display | LCD 128 x 64 dot-matrix, with backlight |
Range (Resolution) | ±20μm (0.01μm)
±40μm (0.02μm)
±80μm (0.04μm) |
Parameters | Ra, Rz, Ry, Rq |
Display resolution | 0.001 μ m/ 0.04 μ inch |
Cutoff Length | 0.25mm / 0.8mm / 2.5mm |
Evaluation length | 1~5 cut-off (selectable) |
Measuring Range | Ra: 0.025-12.5μ |
Measuring Range | Rz: 0.02-160μ |
Tip Angle | 90° |
Vertical rotate | 45mm |
Tip Material | Diamond |
Tip radius | 5μm±1μm |
Power | Li-ion battery rechargeable |
Digital filter | RC, PC-RC, GAUSS, D-P |
Bores from Diameter | 6.0mm, depth 15mm (TS100) |
Accessories | Soft Carrying Case |
