Study of Switching action of a Transistor (BJT)
Objective: Switching circuits using transistors has been designed to study the switching action of a transistor.

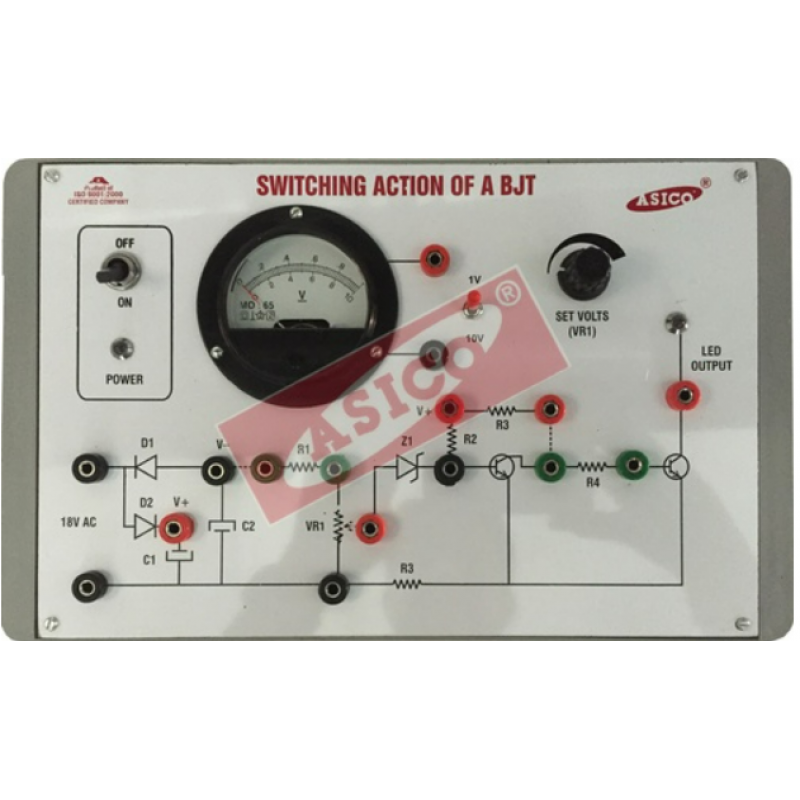

Features: Instrument comprises of fixed power supply of 18 V, one dual range volt meter and important connections are brought out on 4mm sockets.
