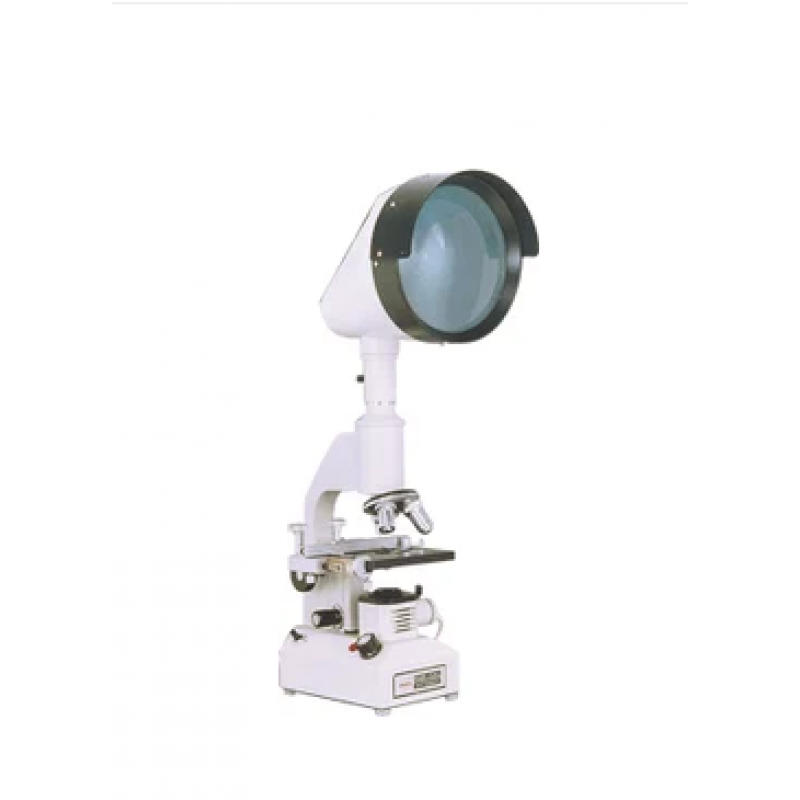

Student Projection Microscope
Product Details:
Body
Monocular Fixed Straight Tube, length 160mm.
Nosepiece
Triple revolving nosepiece with accurate centering and positive click stops
Stage
Detachable Mechanical stage for X-Y cross movement 50X75mm, fully graduated vernier scale.
Illumination
20W halogen lamp, 220/110Volts. Lamp slots provided for natural cooling of the illuminator.
Objectives
Achromatic 4X - 10X- 40XSL.
Eyepieces
Huygenian 10X and 15X
Screen
150mm diameter Glass Projection Screen is provided, can be rotated over 360-degrees on Microscope tube.
Model PRM-11
All specifications are as per PRM-11A but has only 2 Objectives 10X & 40X. Screen size 100mm and without mechanical stage.
