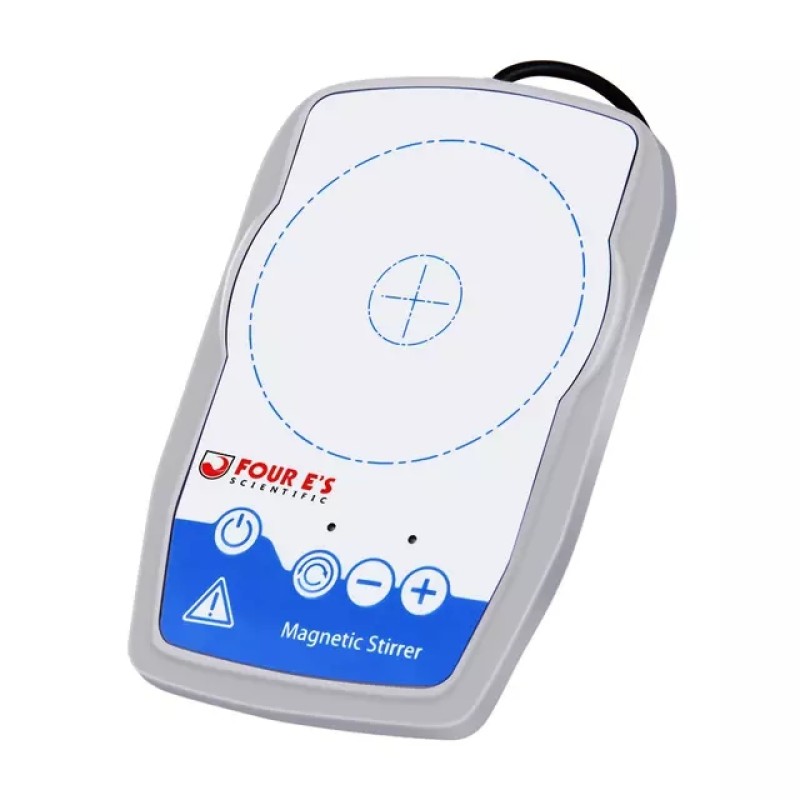

Mini Magnetic Stirrer

Mini Magnetic Stirrer

The Mini Magnetic Stirrer is a very compact stirrer. It is made from chemical resistant materials and is easy to clean. The stirrer offers quiet operation and is ideal for routine stirring applications in general research, life science, quality analysis etc. It also comes with automatic reverse operation function for excellent mixing.


Typical Applications:

● Agitate the liquid for speeding up the reactions or improving mixtures.

● Commonly used for experiments in chemistry and biology industry.


Features:

● Speed range of 15-1500rpm

● High IP protection class (IP 65)

● Automatic reverse rotation for excellent mixing performance

● Set-up plate and casing are made from chemically resistant materials

● Slip-proof and stable stand


Specifications :

Model

MI0102001

Rated voltage [VAC]

100-240

Rated frequency [Hz]

50-60

Output voltage [VDC]

12

Output power [W]

Min.3

Stirring mechanism

coil drive

Speed range [rpm]

15-1500

Stirred quantity (max) [ml]

800

Operating time [%]

100

Protection class

II

Pollution degree

2

Overvoltage category

II

EN 60529 protection class

IP65

Permissible ambient relative humidity [%]

80

Permissible ambient temperature [°C]

5-40

Transport temperature [°C]

-25 to +70

Storage temperature [°C]

-10 to +70

Material

Front membrane sheet Polyester

Weight [ kg]

0.35

Installed weight (max) [kg]

2

Set-up surface [mm]

Φ100

Dimensions (W x D x H) [mm]

115x175x12
