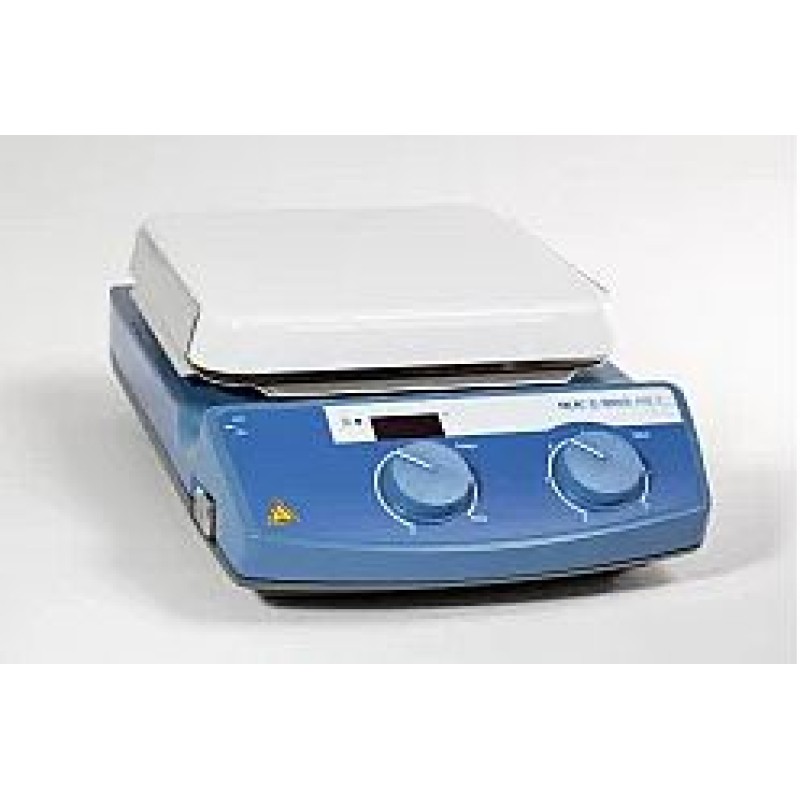

C Mag HS 7 Digital Magnetic Stirrer
Product Details:
| Minimum Order Quantity | 1 Piece |
| Material | Mild Steel |
| Model Name/Number | CMAGHS7 |
| Model Name | CMAG HS7 |
| Brand | IKA |
| Color | Blue and White |
| Capacity | 15 Liters |
| Speed Range | Speed range 100 - 1500 rpm |
| Size | Set-up plate dimensions 180 x 180 mm |
| Weight | 6 KG |
| Warranty | 2 Years |
| Hotplate Surface | with hotplate |
| Surface Temperature Deg Celsius | 50 - 500 DegreeC |
| Hot Plate Surface | Ceramic |
| Shape | Reactangular |
Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 15 l (H2O)
- Simultaneous digital display of target and actual temperatures via LCD display
- Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
- Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
- Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
- 3 operating modes to choose (standard, safe, adjustment protection)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Digital error code display
- Elevated control panel for protection against leaking liquids.
Technical Data :
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 15 l |
| Motor rating output | 1.5 W |
| Speed control | scale 0 – 6 |
| Speed range | 100 – 1500 rpm |
| Stirring bar length max. | 80 mm |
| Heat output | 1500 W |
| Heating temperature range | 50 – 500 °C |
| Heat control | stepless |
| Heating rate heating plate | 5 K/min |
| Connection for ext. temperature sensor | PT1000 |
| Fixed safety circuit | 550 °C |
| Set-up plate material | ceramic |
| Set-up plate dimensions | 260 x 260 mm |
| Dimensions (W x H x D) | 300 x 105 x 415 mm |
| Weight | 6 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 230 / 120 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 1520 W |
Additional Information:
- Production Capacity: 100
- Delivery Time: 1 Day
