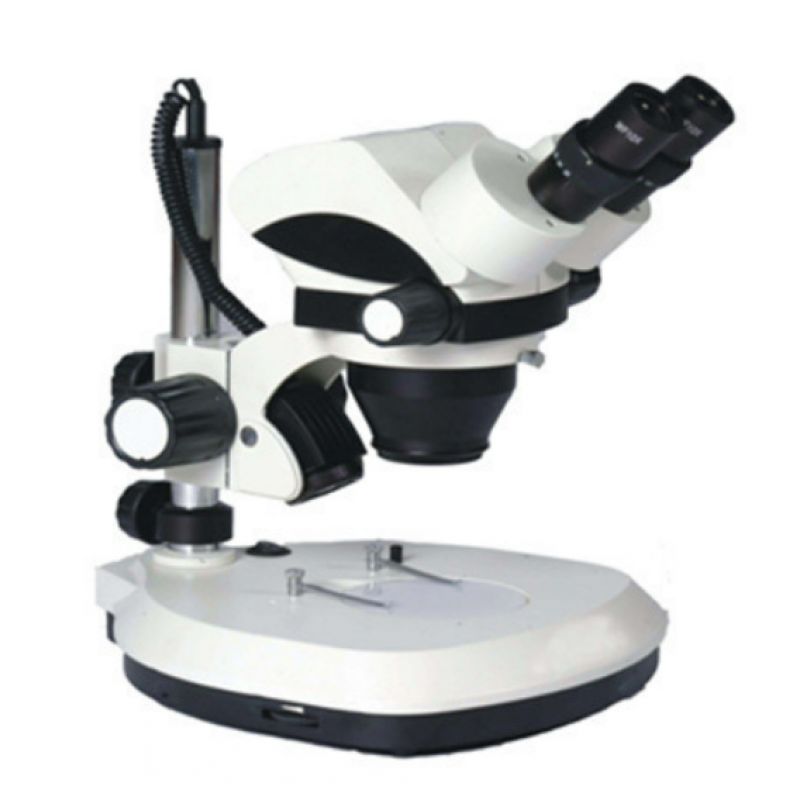

Stereo Zoom Microscope

Specifications:

• Model: Zsm-115
• Viewing Head: Trinocular/Binocular Head tube inclined at 45° for comfortable viewing
• Rotatable Through: 360° IPD 55 mm to 75 mm
• Eye Piece: Eye Piece WF 10X/20 with diopter adjustment of both
• Eyepieces & rubber eyecups
• Zoom Ratio: 0.7 to 4.5
• Total Magnification: 7x to 45x
• Working distance: 80 mm regardless of magnification
• Focusing Range: Rack and Pinion focusing system. Image remains clear, sharp and
• Accurate throughout the whole zoom range
• Illumination: Halogen 6 Volt 20 Watt & 12 Volt 20 Watt
• Power Supply: Switching power supply 220v 50Hz
• Packed in: Thermocole box

Optional Accessories:

• This ring light is an incident illumination for stereo microscope. Annular fluorescent illumination 110 V or 220 V/8W or 10 W
• Tube type
• LED adjustable volume
• Dark field for gem observation
• Gem clamp
