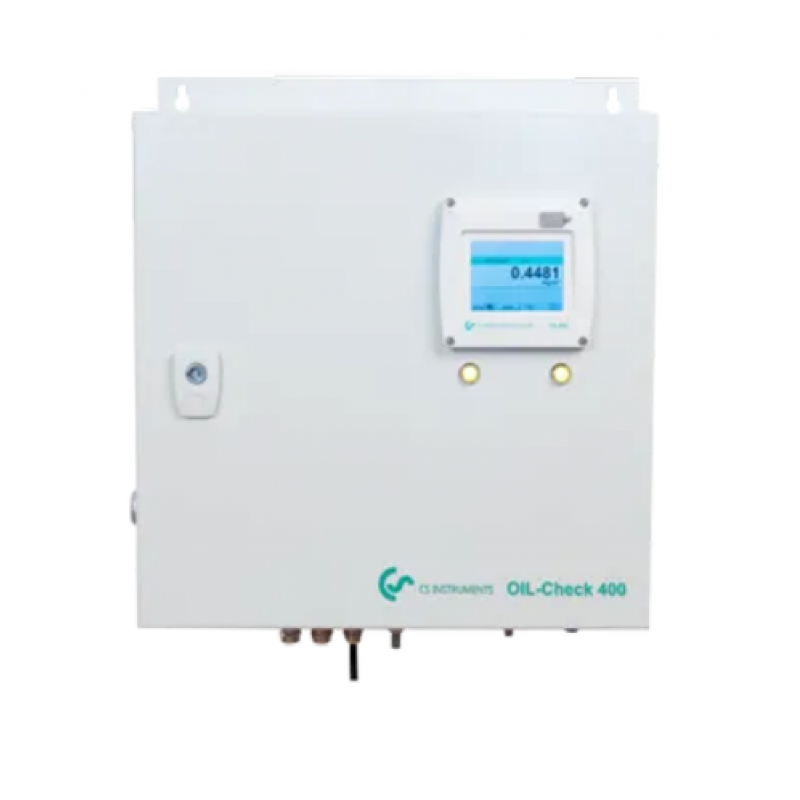

Stationary Oil Check 400

Product Details:

Usage/Application	Compressed air,free from aggressive,corrosive,acid,toxic,flammable and oxidizing components.
Model Name/Number	Stationary Residual Oil check
Measuring Range	<= 0.001 ... 2.5 mg/m3
Humidity of measured gas	<= 40% rel. humidity,pressure dew point max. +10 DegreeC,non-condensable humidity
Features	Data logger for long-term monitoring,display shows trend curves (online & history curves available)

Stationary Oil Check 400 :- Oil Check 400 is the measuring system for high precise measuring residual oil content of the vaporous oil content.

Benefits of Oil check 400:-

1.Permanent, highly precise residual oil measurement (oil vapor) with PID sensor (photo-ionic-detector).

2.Ideal for mobile measurement: The PID sensor is ready for measurement within about 30 minutes.

3. Long-term stable measuring results due to automatic zeropoint calibration. The integrated mini catalyst reliably generates a defined reference gas for zero-point calibration.

4.Contrary to measuring systems which generate the ”zero air“ resp. reference gas by means of active carbon filters and which are there fore depending on the ageing and the saturation of the active carbon filters, the mini catalyst generates the ”zero air” without ageing or wear. There is no change of active carbon filters necessary
