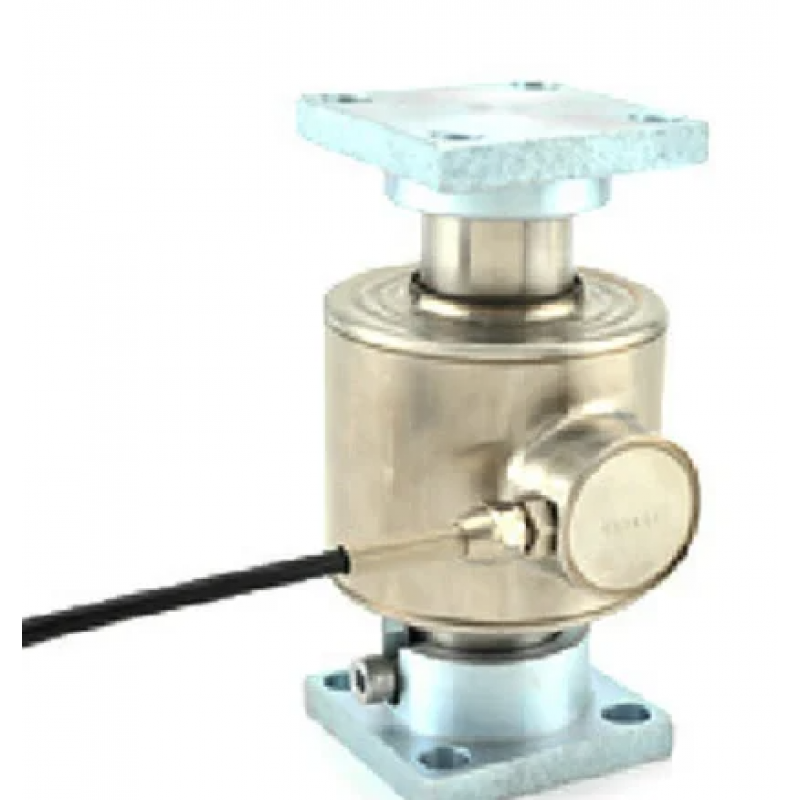

Stainless Steel Load Cell
Product Details:
Material | Stainless Steel |
Ingress Protection | IP68 |
Application | Weighbridge |
Features | Hermetically Sealed |
Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
Creep Error (30 minutes) | +/- 0.03% FS |
Temperature Effect on Zero | +/-0.020% FS/DegC |
Temperature Effect on Output | +/-0.015% FS/DegC |
Zero balance | +/- 1% FS |
Maximum Safe Overload | 150% FS |
Ultimate Safe Overload | 300% FS |
Recommended Excitation Voltage | 5 to 15V DC |
Input Resistance | 770 +/- 5 Ohms |
Output Resistance | 700 +/- 3 Ohms |
Insulation resistance at 50V DC | >= 1000 M Ohm |
Compensated Temperature Range | -10 to +40 Deg C |
Operating Temperature Range | -20 to +70 Deg C |
Cable Length | 2-20 m |
