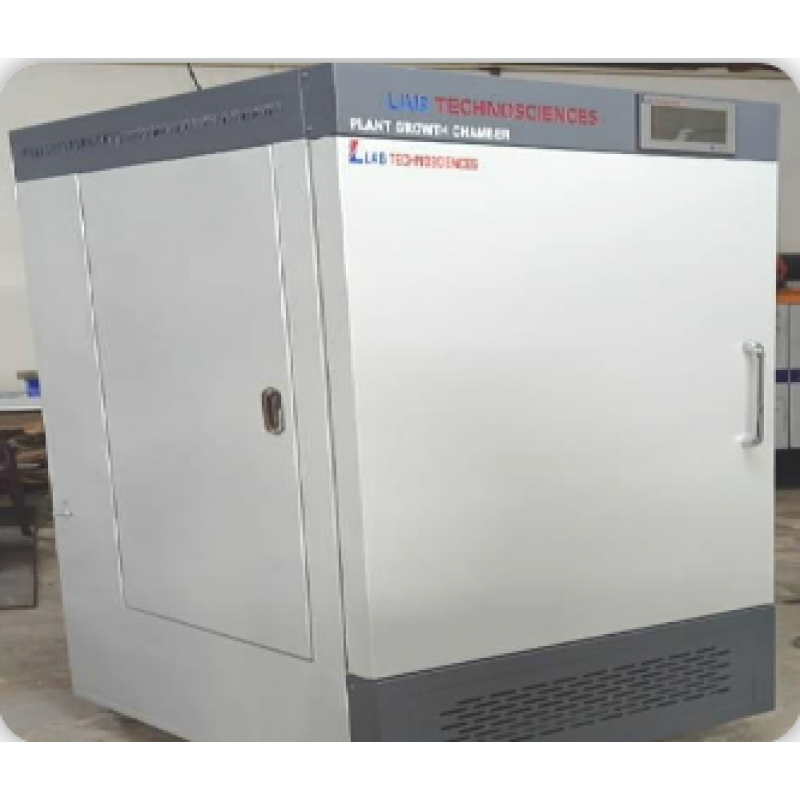

STABILITY CUM PLANT GROWTH CHAMBER

Technical Specification

• Microprocessor PID Touch Controlled 10 Step Programmable controllers should provide automatic operation of temperature.

• Self-Diagnostic and Alarm system: Automatically check any malfunction or errors and Visible alarm system.

• Auto Zero Calibration

• Reliable and Accurate Temperature with Humidity Controller and Co2

• Temperature and humidity by air circulation from down to top air flow direction

• Microprocessor PID Control provides precise temperature & Humidity auto tuning

• Precise Temperature Control 10°C to 60°C

• Precise Humidity Control 30% to 95%

• Precise Co2 Control 0% to 20%

• Tempered Safety Glass Side & front Window For easy sample view without door opening

• Multi- Forced Air Circulation System Silent and durable fan motors to maintain uniform Automatic water supply system with Distilled water or de-ionized water with water purifier Is supplied by built-in reservoir at chamber

• Lamp on delay system-Protects plants from stress by preventing sudden change of Light strength and switch on/off time control.

Programmable Microprocessor PID Controlled Stability Chamber
Temperature Range                   : 10°C to 60°C                                              Light Off  or 05°C to 60°C ) Humidity Range                         : 30% to 95%                (RH Evaporation by Fan with Heater)  Co2 Range                                               : 0% to 20%
Capacity                                            : 210 Liter.
Inner         Dimension                      : 601 x 601x 600 (WxDxH) mm
External Dimension                   : 801 x 920x 1380 (WxDxH) m U shaped SS tubular heater and forced air circulation for Uniform temperature
Compressor        : 1/3 HP HP CFC free cooling system consists of hermetically sealed compressor coupled with evaporation
Illumination Range        : 0 to 20000 Lux (Photo Sensor with Flexible Cable)
Shelve No.          : 02 no.
Material Interior        : Stainless Steel SUS304.
Material Exterior        : Epoxy Powder coated EGI steel
Side Wall            : Tempered safety vacuum sealed wall
Door Inner           : Tempered safety glass door with silicon packing
Door Outer         : Magnetic packing front door & two side door with light Bank
Electricity supply      : 220 Volt AC. 50/60 Hz
Safety       : Safety device: Low & High temperature cut-off settable thermostats & high humidity cut off device Temperature, Humidity, Low water level, earthling Leakage circuit Breaker Component Safety features

• Lock & key door is to restrict unauthorized access

• LED lights, Day/night programmable cycle

• Date and time stamp audit trails for User activity with facility of Equipment set parameters change

• Audio & Visual Alarm acknowledgement  Front Door Single type only

Model LTGC-210 and LTGC-432

• All operations through a color touch screen display

• High quality split type temperature & humidity combo sensor

• Working hour Calculator and standby compressor & humidity system with automatic & schedule Changeover facility.

• Doubled walled insulated modular panels which can be easily assembled at site.

*Product Quality        : ISO 9001:2015, CE & GMP/MSME Certified
