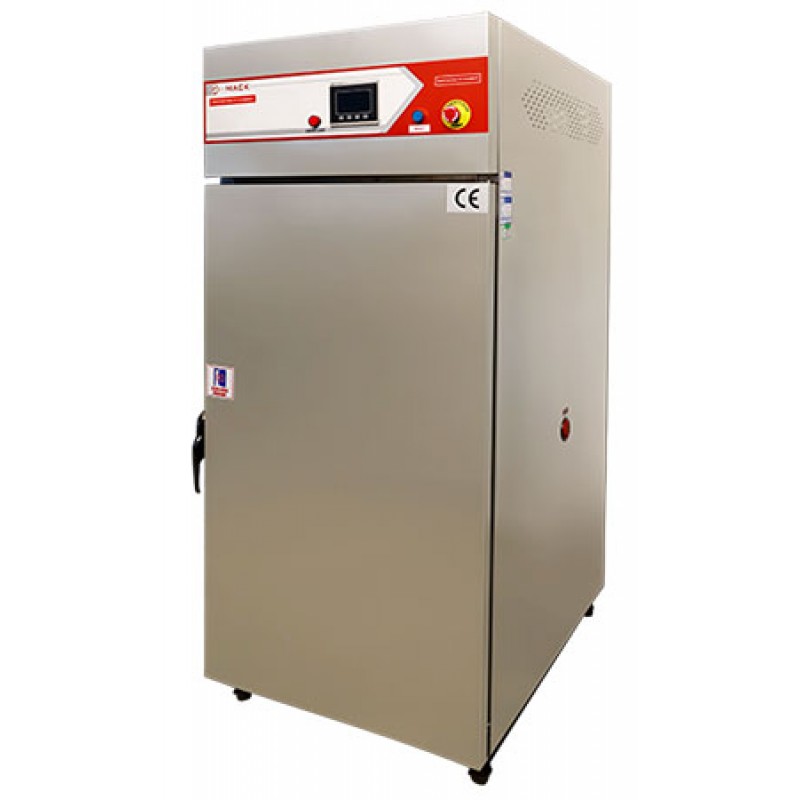

Photostability Chamber
Product Details:
For confirmatory studies, samples should be exposed to light providing an overall illumination of not less than 1.2 million lux hours and an integrated near ultraviolet energy of not less than 200 watt hours / square meter to allow direct comparison to be made between drug substance & drug product.
MACK PHARMATECH’s Photostability Chambers are designed specifically to meet ICH & FDA requirements for Photostability testing. Near UV & visible light testing is Approved Approved performed simultaneously according to ICH Q1B option 2.
UV lights get switched off automatically once the door is opened.
You can test the samples on Fluorescent light or U .V lights separately as well as simultaneously.
Uniform light distribution & high intensity levels allow quick response for forced degradation testing and confirmatory studies.
Lights automatically shut off after a specified exposure level or time duration.

Technical Specification
Temperature Range:	20°C - 50°C
Accuracy:	+ 0.2 °C
Uniformity:	+ 1.0°C
Controller System:	PLC BASED CONTROL SYSTEM (Make: Allen Bradley)

CONSTRUCTION
Body & Door Insulation	Poly Urethane Foam (PUF)
Door	Glass Door from inside will be provided to See the samples without any disturbance & SS Door From outside
Chamber Illumination	Fluorescent Tubes are provided in the Chamber
Port Holes	60mm Dia. Porthole Is Provided In the Chamber for Validation
Heating System	S.S. Nichrome Wire Embedded ‘U’ Shaped Air Heater
Refrigeration System	Cooling System Consists Of Condenser & Compressor
Compressor	Hermetically Sealed Compressor Make - Emerson Copeland
Legs	Bullet feet with in-built screwing adjustment are specially design for long life under heavy load

Standard Features:

• "CE APPROVED" EQUIPMENT
• ALLEN BRADLEY MAKE : PLC BASED CONTROL SYSTEM
• ALLEN BRADLEY MAKE : HMI : LED 4.3" TOUCH SCREEN DISPLAY
• PRINTING INTERFACE FACILITY

• PC COMMUNICATION VIA ETHERNET
• MASTER & STAND BY PT100 SENSORS [MAKE – OMEGA]
• INDIVIDUAL TIMER FOR LUX & UV


Optional Accessories:

• 21 CFR PART 11 COMPLIANCE SOFTWARE : DAAS – V 4.0
• LUX METER

• UV METER
• HOOTER SYSTEM ( Security Alarm System)

• GSM TECHNOLOGY ( SMS Alert System)
• PASSWORD PROTECTED DOOR ACCESS SYSTEM
