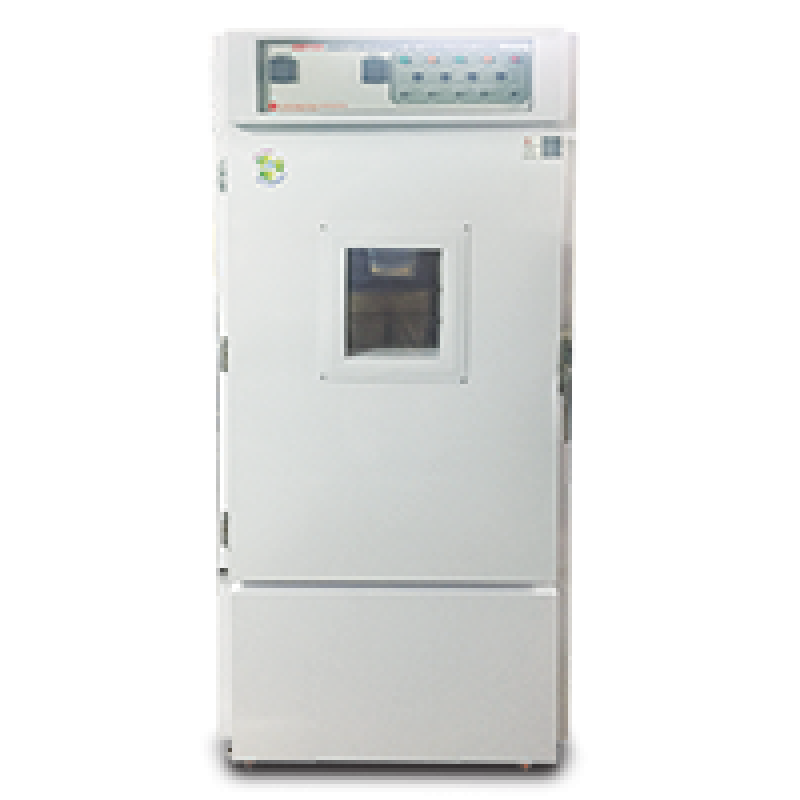

Humidity Chamber / Stability Chamber
Product Details:

• Designed for testing product shelf – life, packing and electronic test.
• Specially designed to meet ICH, WHO & USFDA requirements.

• Double walled having Inner 304 SS chamber and Exterior finished in Powder Coated Shade in REGULAR MODEL.
• Inner SS 304/SS 316 and Exterior SS 304 matt/buff finish in GMP MODEL.

• The Temp. & Humidity controlled by Microprocessor based PID Temp. & RH% Controller with Dual Digital Indicator & PT – 100 sensor for Temp. & imported sensor for RH%.
• Cooling Kit is CFC Free. The Cooling Kit includes hermetically sealed compressor, condenser, Fan Motor, etc. and are safely placed below/above the chamber

• Humidification through steam injection system. Humidity levels from 40% RH to 95% RH & depends on Temperature i.e. lower temp. lower humidity higher the temp. higher humidity. Humidity Stability :- 2% RH to ± 3% RH
• Air Circulation system ensures more stability of condition & even distribution inside the chamber.

• A Boiler Tank consisting of Water Heater having auto cut off facility with Audio Alarm for low water level.
• Reservoir Water Tank having float Valve provided.

• Overload protection relay & time delay for compressor.
• Adjustable SS Rod type shelves with all units as standard.

• A two pan glass window provided on door for clear observation of test. An ancillary type heater provided in between the glass to cut the condensation.
• The illumination is provided through fluorescent tubes for clear visibility of test

Optional

• PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
• TEMP. SCANNER 4 Channel/8 Channel with Printer Output facility to record temp. & RH at various places inside chamber.

• PLC Based Touch screenControl System with printer OUTPUT facility
• AUTOCHANGE OVER to stand by Cooling System

• GSM mobile alert.
• 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management.

• ALARM HOOTER facility.
