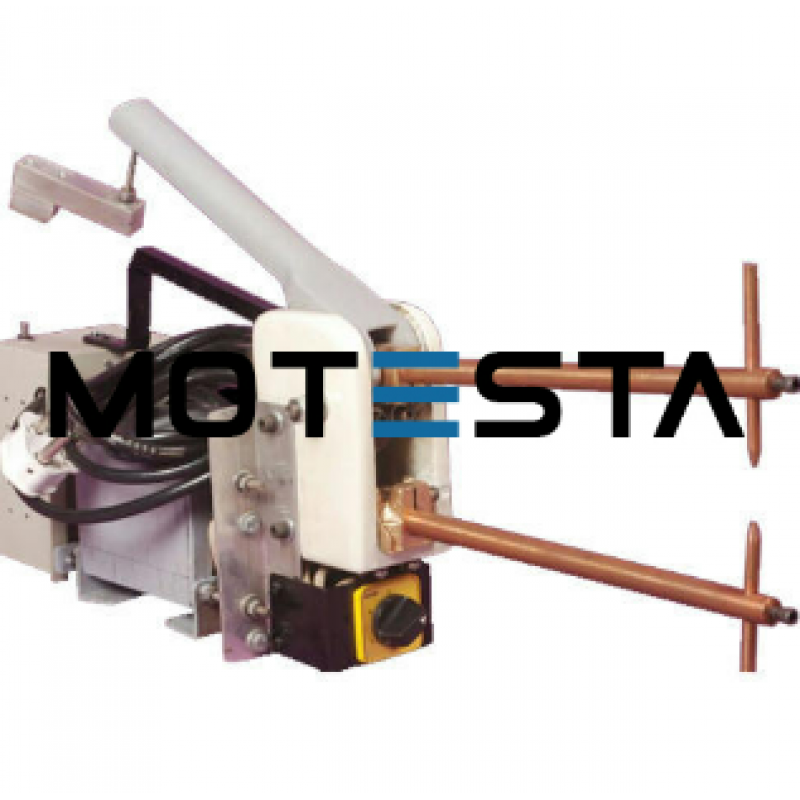

Spot Welding
KVA Rating @ 50% duty cycle : | 6 | 7.5 | 10 | 15 | 20 | 25 | 15 | 20 | 30 | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Throat Depth : (cm) | 22.5 | 30 | 30 | 40 | 30 | 46 | 60 | 90 | 30 | 46 | 60 | 90 | 30 | 46 | 60 | 90 | 30 | 46 | 60 | 90 | 30 | 46 | 60 | 90 | 30 | 46 | 60 | 90 |
Throat Clearance : (cm) | 20-30 | 20-30 | 20-30 | |||||||||||||||||||||||||
Welding M. S. sheet Max 2 X mm Range thickness Min 2 X mm : | 1.6 | 1.8 | 2 | 1.9 | 2.5 | 2 | 1.6 | 1 | 3.5 | 3 | 2.5 | 2 | 4 | 3.5 | 3 | 2.5 | 3.5 | 3 | 2 | 1.8 | 4 | 3.6 | 3 | 2.8 | 5 | 4.5 | 4 | 3.5 |
| WITH CERTAIN LIMITATIONS S. S. & BRASS CAN ALSO BE SPOT WELDED | |||||||||||||||||||||||||||
KVA Rating @ 100% duty cycle : | 4.2 | 5.25 | 7 | 10.5 | 14 | 17.5 | 10.5 | 14 | 21 | |||||||||||||||||||
Current Control : | By means of tap change links between (approx.) 55% and 100% | |||||||||||||||||||||||||||
Class of Insulation : | F | F | F | F | F | F | F | F | F | |||||||||||||||||||
Cooling Transformer : | AIR | WATER | ||||||||||||||||||||||||||
Cooling Arms & Electrodes : | WATER | WATER | ||||||||||||||||||||||||||
| CUSTOMERS TO PROVIDE FOLLOWING SERVICES | |||||||||||||||||||||||||||
Mains supply : | 230 V.IPh. 50 Hz / or | 415 Volts. Single phase, 50 Hz : (2 lines of 3 phase supply) | ||||||||||||||||||||||||||
Main supply cable size (copper) : | 10 | 14 | 25 sq : mm | 14 sq : mm | 25 sq : mm | |||||||||||||||||||||||
Main Disconnection switch : | 2 Pole – 30 amps. | 2 Pole – 60 Amps | 2 Pole – 100 Amps | |||||||||||||||||||||||||
Delay Action Fuse : | 15 A | 20 A | 30 Amps | 60 Amps | 30 Amps | 60 Amps | ||||||||||||||||||||||
Water at maximum temperature | 5 Ltrs Per minute | 10 Ltrs Per minute | ||||||||||||||||||||||||||
Air : | 5.6 kgf/cm2 | 5.6 kgf/cm2 |
