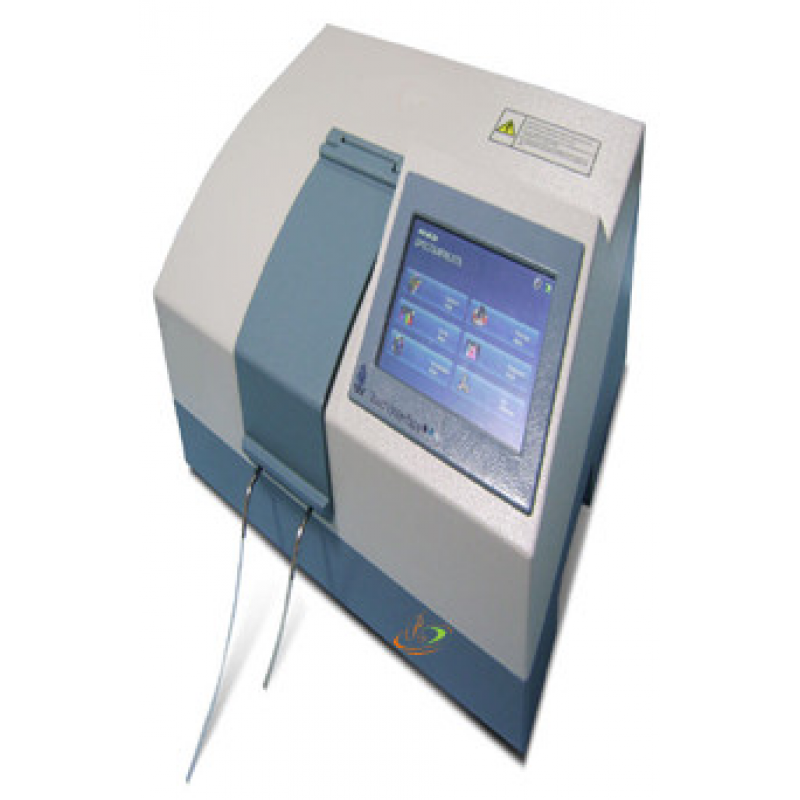

Zonotech Double Beam UV Visible Spectrophotometer BUV-12
Product Details :
Wavelength Range | 190-1100 nm |
Spectral Bandwidth | 1 nm |
Working Mode | T,A,C,E |
Optical System | Double beam |
Scanning Speed | Fast / Medium / Slow |
Photometric Range | -0.3 - 3.5 A, 0 to 220 %T |
Wavelength Accuracy | +0.3 nm |
Wavelength Reproducibility | < 0.10 nm |
Photometric Accuracy | + 0.3% T (0-100% T) +0.002 A (0-0.1 A) |
Photometric Reproducibility | < 0.15 % T |
Stray Light | < 0.1% T (Nal. 220nm, NaNO2 340 nm) |
Baseline Flatness | + 0.002 A |
Stability | < 0.001A/h (at 500 nm, after warming up) |
Noise | +0.001A (at 500 nm, after warming up) |
Detector | Dual Silicon Photodiode |
Display | 6 inches high light blue LCD |
Power | AC:220V + 10%, 50 Hz. |
Dimensions | 630 x 470 x 210 mm |
Weight | 26 Kg |
Glass Cells | 16 No. |
Quartz Cells | 4 Nos. |
Fuse | 3 Nos. |
Instrument Cover | 1 No. |
Software CD | 1 No. |
RS 232 Cable | 1 No. |
Operation Manual | 1 No. |
