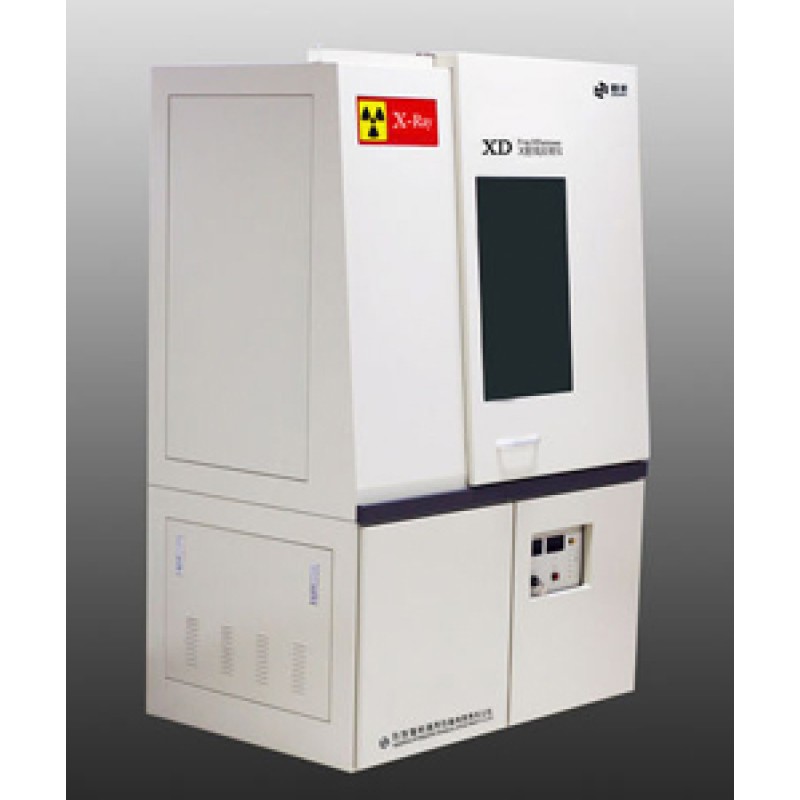

XRD X-Ray Powder Diffractometer

XRD X-Ray Powder Diffractometer

Product Details :


XRD :-

X-ray powder diffractometer is the basic instrument on studying and indentifying the composition and structure of material. The applied field is showed as follows:


  • The atom arrangement of all kinds of compound in material could be determined. Some particular performance of material is related with atom arrangement.
  • The composition of material could be determined.
  • The ratio of all kinds compound could be determined.
  • The grain size, stress, texture, orientation and crystallizability.
  • XD-6 is with vertical multifunction goniometer (θs-θd) which is fit for the samples from normal powder and massive solid to very big and irregular solid and ropy liquid. Its precise design and strong hardware and software could fulfill any testing and researches on the microstructure of materials. The type of vertical θs-θd goniometer means the sample holder fixed, the X-ray source and detector turned.


Features & Functions :

  • Vertical multifunctional high precision goniometer: the minimal step size is 0.0001°. mechanical repeatability excels 0.0005°. θ-2θ goniometer could be selected, which is fit for normal powder and massive solid samples.
  • Easy use and convenient maintenance: the sample is set horizontally because of the vertical goniometer. The sample is more conveniently put in. the sample stage is more conveniently cleaned up. The goniometer will not be polluted and the precision of goniometer is not influenced.
  • High performance: the report of customer operating instrument for 8 months could be provided. The standard deviation of diffraction angle of αSiO2 is better than 0.0015°. Attention to the design of mechanical security: cabinets design and goniometer shutter using a chain institutions, has not yet specified the location of X-ray can not be opened, to prevent leakage of X-ray.
  • A variety of option can extend system functionality: in accordance with the purpose of analysis, you can choose high temperature annex, Graphite curved- crystal monochromator and a variety of optional accessories.


Application :

  • Physics Chemistry
  • Molecular Sieve
  • Battery Materials
  • Environmental Protection- Industrial Waste
  • Ore—Clay—Rocks
  • Petrochemical Industry- Catalyst
  • Iron and Steel
  • Non Ferrous Metal
  • Pharmaceuticals
  • Electronic Components
  • Coal – Oil – Natural Gas
  • Ore- Rock
  • Machinery Car Shipbuilding
