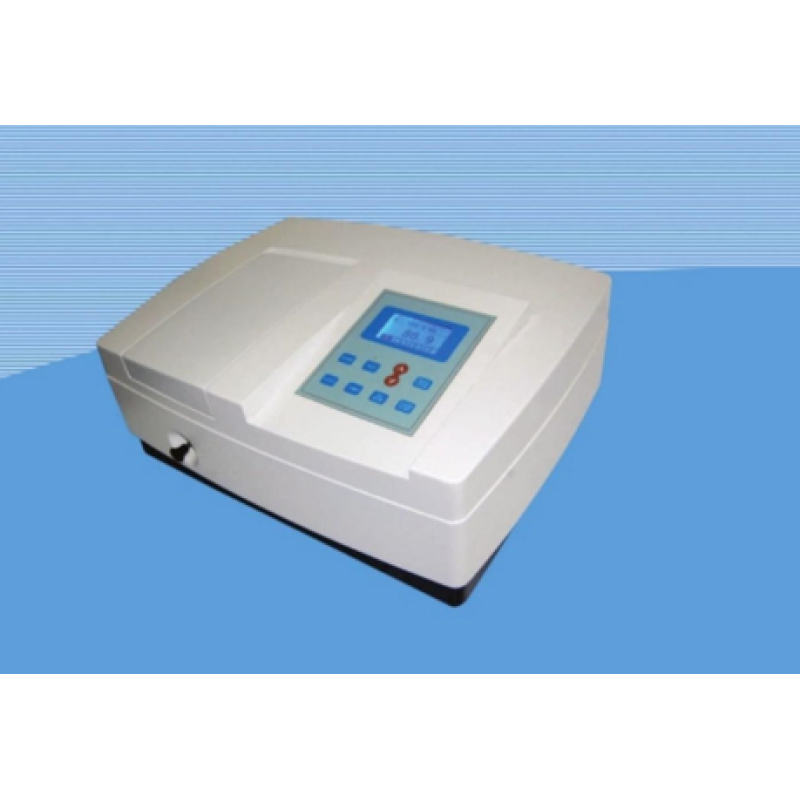

Advanced Single Beam Microprocessor UV-VIS Spectrophotometer

FEATURES

  • Large LCD screen(128*64) Dots.
  • Can display and save 50 groups of data, 5 groups per screen. Data can be restored after a sudden power cut.
  • Auto setting Wavelength
  • Tungsten lamp & deuterium lamp can be turned on/off individually extend lifetime.
  • Automatica WL Calibration and dark current getting, with Scanning

TECHNICAL SPECIFICATIONS

Optical System

: Single-Beam,Grating 1200 lines/s

Bandwidth

2nm

Wavelength range

190-1000nm

Wavelength Accuracy

+1nm

Wavelength Repeatability

0.5nm

Wavelength Setting

Auto

Photometric accuracy

+0.5%T

Photometric repeatability

0.3% T

Photometric Range

-0.3-3A,0-200%T

Stray light

<0.3%t

Stability

+0.002A/h @500nm

Display

128*64 Dots LCD

Detector

Silicon photdiode

Standard Cell holder

4-position 10mm cell charger

Light Source

Tungesten &Deutreuim lamp

Output

Usb port & Parallel port(Printer)

Power Requirements

AC 85~250 V

Dimensions

420 x 280 x180 mm

Weight

12Kg



Standard Configuration

Main Set

1 No.

Usb Cable

1 No.

Accessory kit,including 4 glass cell(1cm)

1 No.

2 Quartz cell(1cm)

1 No.

Operating Manual Software manual

1 No.

Dust cover

1 No.

Software CD

1 No.

Software Key

1 No.

Power cable

1 No.


APPLICATIONS

  • Environment Monitoring
  • Commodity Inspection
  • Food inspection
  • Agricultural Chemistry
  • Teaching colleges & universities
  • Metallurgy
  • Geology
  • Machine Manufacturing
  • Petrochemical industries
  • Water and waste water labs
  • Food and beverage lab
