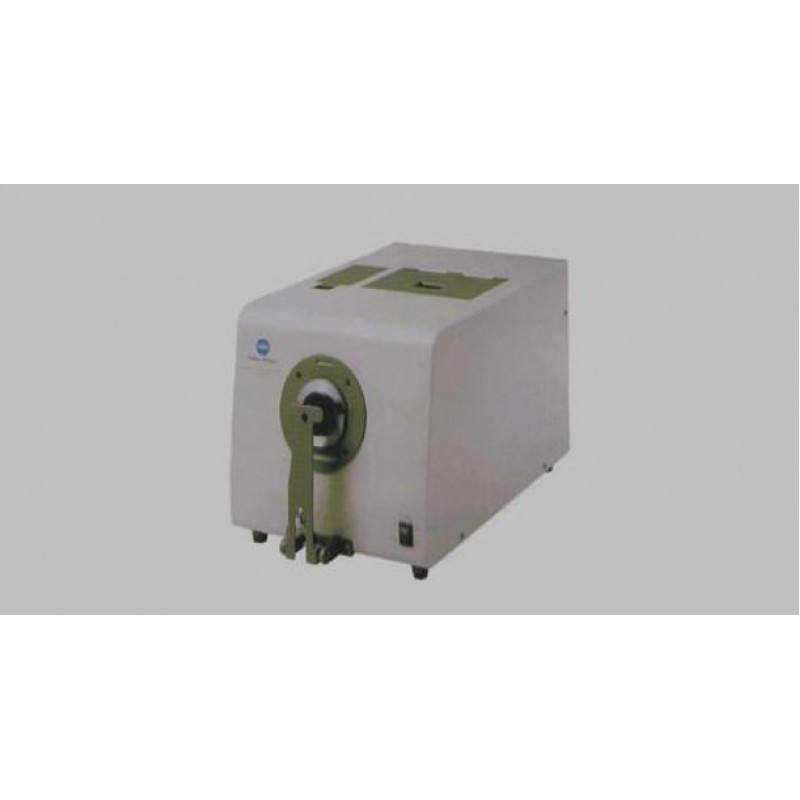

Spectrophotometer (Japan & India) Make

Product Details :

• Enables measurement of reflecting colours (d/8) equipped With the simultaneous measurement of SCI/SCE.

                    Conforms to CIE No. 15, ISO7724/1

                    ASTM1164, DIN5033 Teil andJIS Z8722

                    Condition C standard.

                    Transmittance d/0 conforms

                    To CIE No.15,ASTM1164 and DIN5033 Teil7 standard

• Diffraction grating, Wavelength range :360-740nm, 1
• Wavelength pitch : 10mm, reflectance range:0-200%
• Resolution:0-01%
• Sphere size Ø152 mm , Pulzed xenon lamps (x4)
• LAV - Ø25.4 mm / Ø30 mm, MAV : Ø8 mm / Ø11 mm
• SAV - Ø4 mm / Ø7 mm
• Viewfinder design for easy sample viewing
• Numerical UV Control for calibration and measurement Fast, instantaneous numerical UV adjusted enables UV Included Soft-flash mode to avoid triplet absorption
• Repeatability: Spectral reflectance: Standard deviation within 0.1%
• Colorimetric values: Standard deviation within DE*abO.O2
• Inter Instrumental agreement: Mean DE*ab O.15 (SCI) based on 12 BCRA series II colour tiles
• Compared to values measured with the master body.
• Temperature dependence: Spectral reflectance: Within ±O.10%/C
• Colour difference: Within DE*abO-O5/C
• Storage temperature/humidity range 0 to 40°C, less than 80% RH (at 33 with no condensation)
• Altitude 200m or below. Installation category:1 Pollution 2°

Accessories Provided with above instruments

• Transmittance Specimen Holder CM-A96
• Cell CM-A98 (10 mm)
