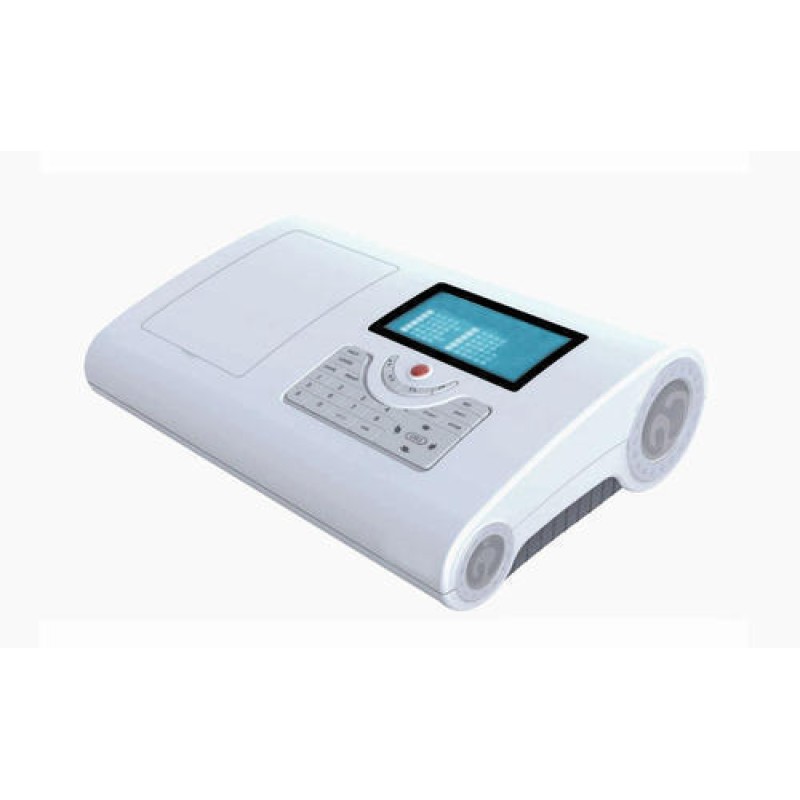

Spectrophotometer Double Beam
Product Details :
Wavelength Range | 190-1100 nm |
Application | Laboratory Use |
Spectrophotometer Double Beam MSW-020DBS:
Device offered comes with the wavelength range of 190-1100 nm (1200 Lines/mm grating) as well as Basic/Quantitative/Wavelength Scan/DNA Protein Test/Kinetics operational modes. For efficient performance, the system can deliver Fast / Medium / slow scanning support as well as wavelength accuracy of +0.1 nm, the bandwidth of 0.5, 1,2,4,5 and wavelength reproducibility of 0.1 nm. Some of the other standard features of this system include photometric repeatability of + 0.2 % T, baseline flatness of + 0.001 A, USB based data output port and parallel printer port among others.
Photometric Display Range | 0-200 % T, -0.3 - 3.0 A, 0-9999 C |
Bandwidth | 0.5, 1,2,4,5 |
Wavelength Accuracy | +0.1 nm |
Net Weight | 26 Kg |
Wavelength Range | 190-1100 nm (1200 Lines/mm grating) |
Scanning Speed | Fast / Medium / Slow |
Dimensions(L*W*H) | 630 x 430 x 206 mm |
Detector | Silicon Photodiode |
Lamps | Deuterium Lamp & Tungsten Halogen Lamp |
Display | Graphic LCD (320*240 Dots) |
Printer Port | Parallel Port |
Data Output Port | USB |
Stray Light | 0.05% T @ 220nm, 360 nm) |
Noise | +0.001A |
Baseline Flatness | + 0.001 A |
Stability | 0.001A/h @ 500 nm |
Photometric Repeatability | + 0.2 % T |
Photometric Accuracy | + 0.3 % T |
Wavelength Reproducibility | 0.1 nm |
Additional Information:
- Production Capacity: 20
- Delivery Time: 10
- Packaging Details: Card Board Box export worthy.
Spectrophotometer Double Beam
- Views: 125
- Vendor: Mohit Scientific Works
- Vendor Type: Manufacturer, Supplier
- Product Code: MSW-020DBS
- Availability: In Stock
