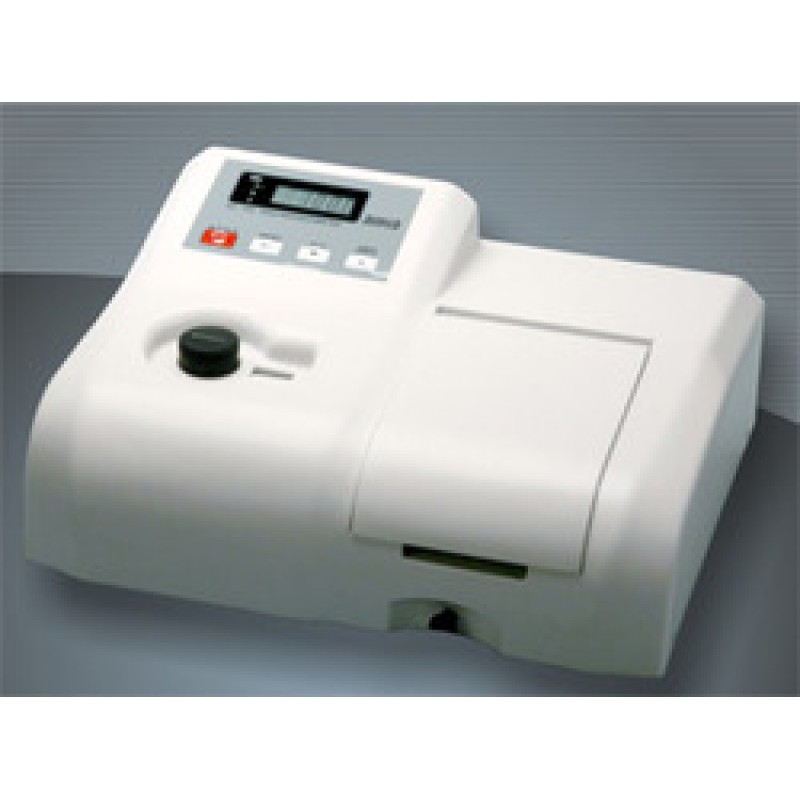

Single Beam UV-VIS Spectrophotometer

Product Details :

We also supply microprocessor UV-VIS Spectrophotometer (Single Beam) and they also score on points like versatility, ruggedness, easy operations complete accuracy while determining absorbance, % transmission and concentration of liquid. Our massive infrastructure and efficient team are responsible to maintain the quality and durability of the product and they follow standard procedures regarding manufacture and safe keeping. Some features include:

• Able to cover 195 to 1000nm
• 4 Position Cuvette Holder
• RS-232C Computer Interface
• High wavelength Precision

Technical Specifications:

• Wavelength
• 195 to 1000nm
• Spectral Bandwidth
• 2 nm
• Accuracy
• + 0.5 nm
• Repeatability
• + 0.3 nm
• Resolution
• 0.1nm
• Photometric

Photometric Range

• 0.1 nm% T: 0 to 100%, Abs.:0 to 1.999 Conc.:0 to 1999, K-Factor:0 to 1999
• Accuracy
• +0.005 Abs at 1.0 Abs +0.010 Abs at 1.0 Abs
• Stray Light
• Less than 0.1% Abs at 320 nm
• Readability
• + 1 Count
• Data Readout
• Single Line LCD display
• 4 Keys, Soft touch membrane type
• Painter Interface
• Printer interface for any centronics dot matrix printer
• Serial Interface
• RS 232C interface
• Light Source
• a) Tungsten Halogen Lamp
• b) Deuterium Lamp (D2)
• Detector
• Wide range Silicon Photodiode
• Optics
• Complete mirror optics with resolution 1200 grooves/mm grating
• Sample Holder
• 4 position adjustable sample holder
• Power
• 230V + 10%, 50 Hz. AC
• Dimensions
• 420 x 350 x 240 mm (lxbxh) Approx.
• Weight
• 10 Kg (Approx.)
