Microprocessor Visible Spectrophotometer

Product Details :

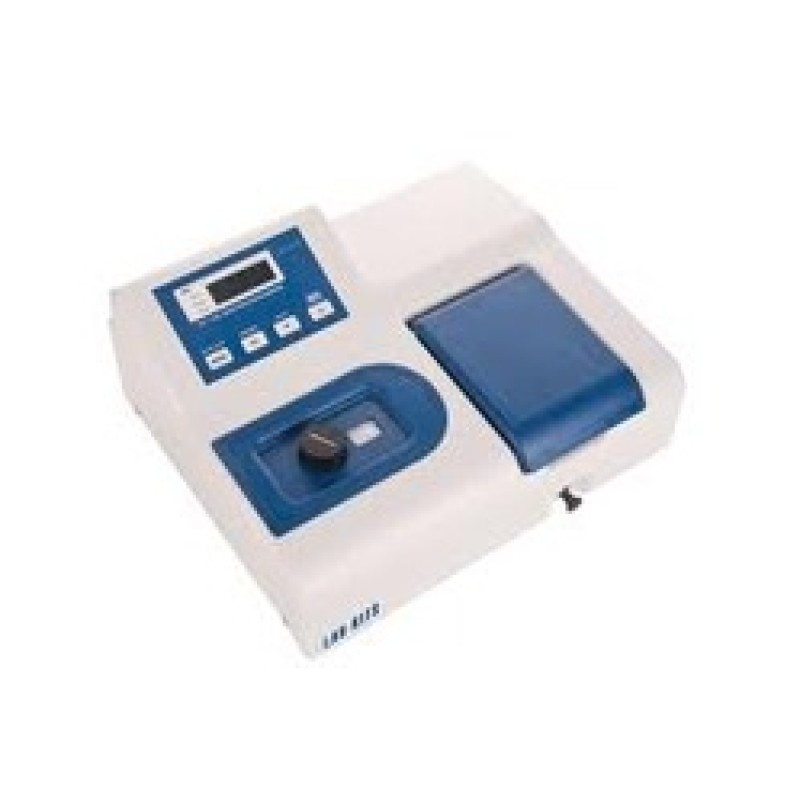

Microprocessor Visible Spectrophotometer RS-721

CHARACTERSTICS

• The monochromator with a holographic flashing grating is used. It has the advantage of high wavelength precision, good monochromaticity and low stray light.
• A sample compartment for 0.5cm-10cm cells.
• Direct concentration read-out and concentration factor setting function.
• Equipped with RS232 port.

Technical Specification:-

• Wavelength Range
• 340 to 960nm
• Transmittance Range
• 0-199.9
• Absorbance Range A
• 0 – 1.999
• Scope of concentration display
• 0 to 1999
• Wavelength Repeatability
• 1.5 nm
• Wavelength Accuracy
• ± 3 nm
• Transmittance Accuracy
• ± 1%
• Absorbance Repeatability
• 0.3%
• Bandwidth
• 2nm
• Stray Light
• 1.0%
• Noise
• 0% 0.3
• Noise
• 100% 1.0
• Display
• LCD Screen with Backlight
• Output Mode
• Standard RS232 serial port
• Overall Dimensions
• 460 x 350 x 180
• Weight
• 8 Kg. (Approx.)
