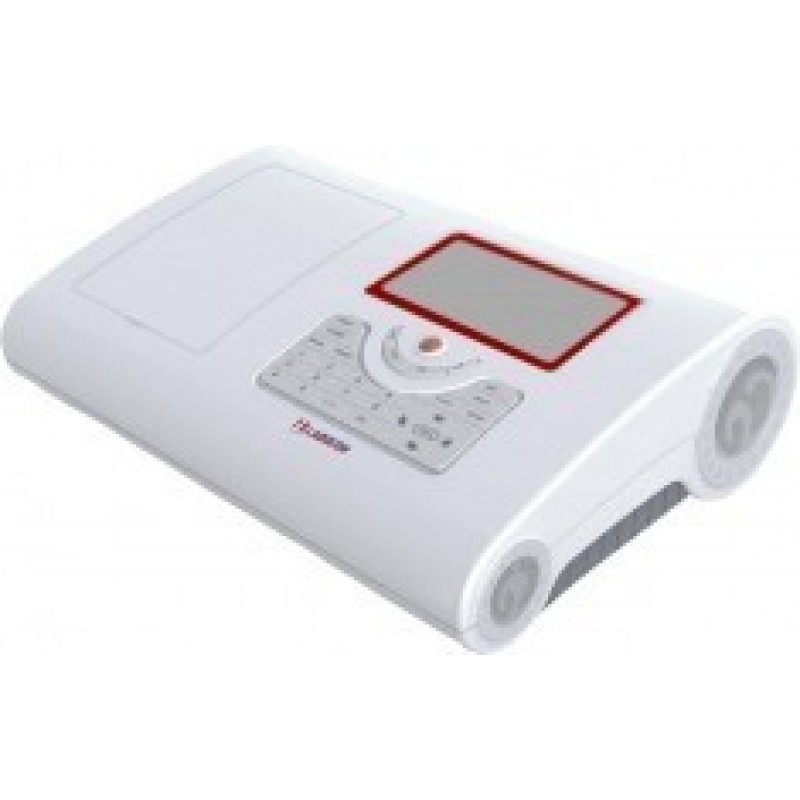

Double Beam UV Visible Spectrophotometer

Product Details :

Double Beam UV Visible spectrophotometers 200 series offers measurement range of 190-1100nm at variable band widthof 0.5, 1, 2 and 4nm; which delivers high accuracy, reproducibility and high throughput at each run.

It’s offer true double-beam measurement for the best possible stability and allows references to be measured and corrected in real time.

DETAILS

• Wavelength range : 190-1100nm
• Spectral Bandwidth : 0.5, 1.0, 2.0, 4.0nm
• Optical System : Monochromator with 1200 lines/mm blazed holographic grating
• Detector : Silicon Photodiode
• Stray Light : Stray light is achieved at ≤0.05%T at 220nm and 360nm
•  Light source : Deuterium and tungsten halogen lamp
• Sample size : A wide range of standard cuvettes to be use based on the sensitivity or sample volume requirements.
• Sophisticated and simplified sample analysis software  : The sample analysis software provides the scanning, fixed wavelength analysis, quantitative analysis, data collection, storage, export, and reporting. With additional feature of an easy access USB port available in the unit that enables results to be stored directly to a USB memory stick for easy transfer of data.
• Optional bandwidth 0.5/1.0/2.0/4.0nm
• Online software up gradation via internet (for stand-alone models)

• HP or Epson Deskjet printer to print results and graphs

SPECIFICATION

APPLICATION

Labocon Double Beam UV Visible Spectrophotometer LUVSD-200 series is widely used in following application:

• For measurement of DNA, RNA and oligonucleotide and Protein
• Proteins can be quantitated by BCA, Biuret, Bradford, Direct UV and Lowry

• The OD of bacterial cell culture solutions can be measured to optimize harvest times

• For the determination of metal and organic non-metal analytes in water

• Ideal to be use in petrochemical labs as they are solvent resistant such as Naphthalene in aviation

Additional Information:

• Item Code: LUVSD-202
