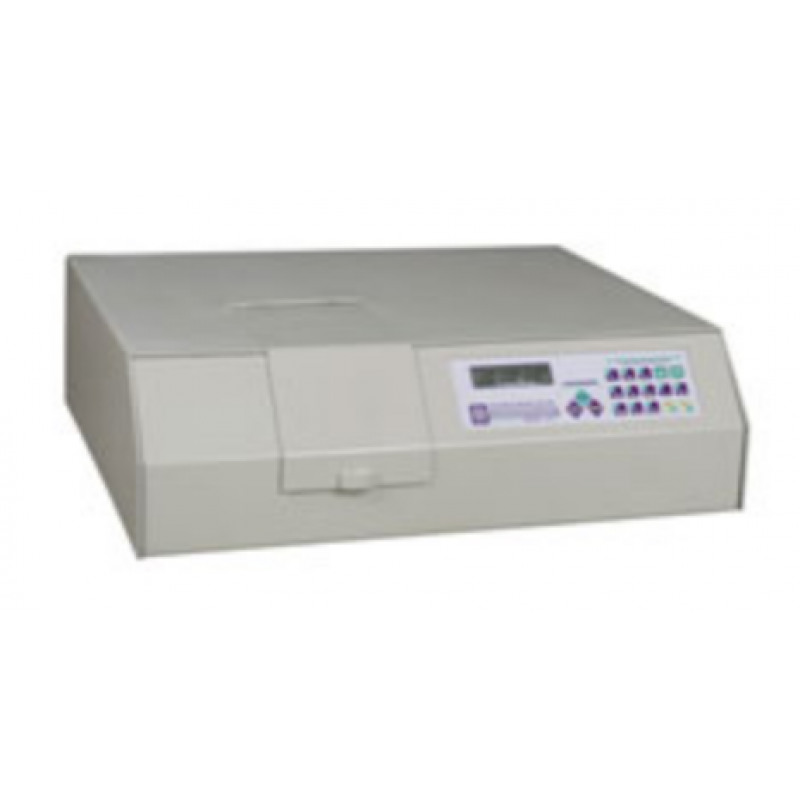

Double Beam Spectrophotometer 1372

Product Details :

FEATURES

• Double Beam Optics
• Scanning UV-VIS Spectrophotometer
• 24 x 2 Line Alphanumeric Backlit LCD
• Compact, Modular And Economical
• Automatic Wavelength Calibration
• Data Saving And Retrieval Facility
• Programmable Lamp Change Over Wavelength
• Microprocessor Based With Printer Interface
• Optional PC Compatibility With RS-232C Interface
• Automatic 6-Position Cuvette Holder For 10 mm Pathlength Cuvettes
• Fully Automatic, User Friendly And Menu Driven Software
• Self Check And Self Diagnostic Features

Double Beam UV-VIS Spectrophotometer is a compact and easy to operate instrument for spectrophotometric analysis of any concentration. The output is available on a 24 x 2 line alphanumeric backlit LCD display in terms of %Transmission (%T), Absorbance (Abs.), and Concentration (Conc.). The instrument has 1000 sample storage memory, printer output for printing data with any dot matrix printer. RS-232C interface for computer can be provided on request. The use of microcontroller had made it an extremely versatile and state-of-the-art instrument. Facility for using 10 mm pathlength cuvette is provided.

The instrument operates at wavelength between 190 to 1100 nm. The use of diffraction grating in the monochromator produces a linear spectrum. The use of grating having very high resolution of 1200 lines/mm ensures a narrow bandwidth. Deuterium lamp (D2) is used in the range 190 to 380 nm and Tungsten Halogen lamp (W) is used in the range 380 to 1100 nm.

SPECIFICATIONS

SPECTRAL
Range	190 - 1100 nm
Bandwidth	2 nm
Accuracy	± 0.5 nm
Readability	0.1 nm
Repeatability	± 0.2 nm
PHOTOMETRIC
Range	%T: 0 - 100.0 %, Abs: 0 to ± 3.000
Accuracy	± 0.005 Abs @ 1.0 Abs, ± 0.010 Abs @ 1.5 Abs
Readability	%T: 0.1, Abs: 0.001
Repeatability	± 0.002 Abs @ 1.5 Abs
Stray Light	Less than 0.1 %T @ 260 nm with KI 10 g/l
System	Double Beam Optics
Light Sources	Deuterium Lamp (D2), Tungsten Halogen Lamp (W)
Monochromator	Czerny-Turner type with 1200 lines/mm
Detector	Wide range highly sensitive photodiode
