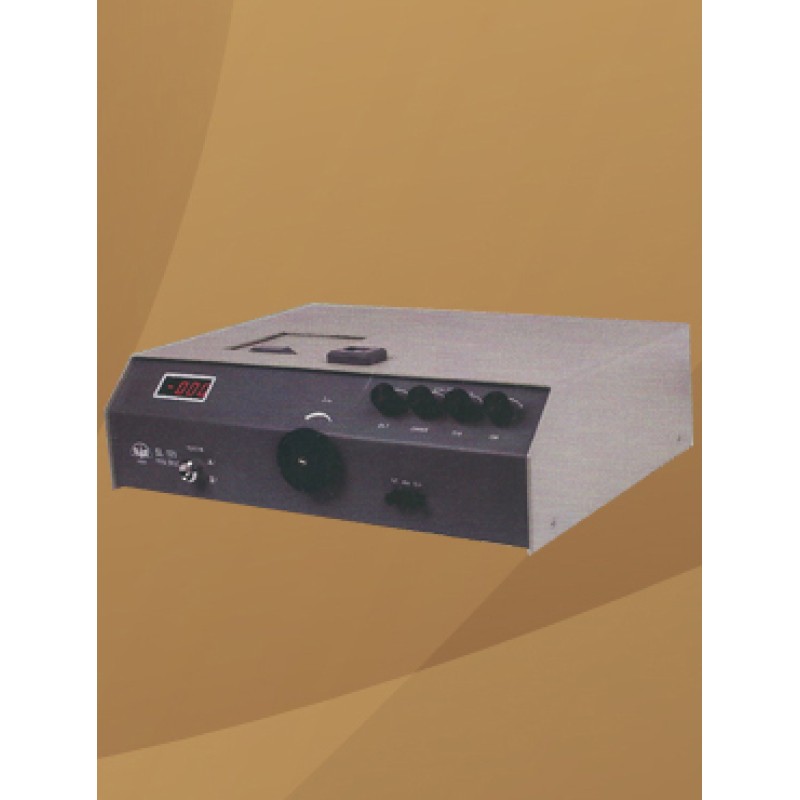

Digital Spectrophotometer
Applications :
- Nutrients Like N, P, K, S, Ca, Mg, Zn, Cu, B, Mo, etc., in Agriculture Plants etc.
- Organic compounds in Biological matter.
- Glucose, Fructose, Carbohydrates, Proteins etc., in Foods.
- Edible dyes, alcohols etc., in Beverages.
- Purity of constituents in Pharmaceuticals.
- Toxic elements, Cd, Pb, Hg etc., in Effluents.
- Biological Samples.
- Constituents in compositions used in Metallurgy, Fertilizer, Pesticide, Chemical, Petro Chemical, Steel, Cement, Glass Other Industries.
SPECIFICATIONS
- SPECTRAL
- Range : 340-1000 nm
- Bandwidth : 5.0 nm
- Accuracy : ± 2.5 nm
- Readout : Graduated Scale
- Readability :2.5 nm
- Repeatability : ± 2.5 nm
PHOTOMETRIC
- Range : 0-1.999 Abs
- Accuracy : ± 0.05 Abs. at 1.0 Abs
- Repeatability: ± 0.01 Abs.
- Stability (Baseline) : ± 0.01 Abs/hr. after 2hours warm up
- Stray light : < 0.5 % at 340 nm
| LIGHT SOURCE : Tungsten (W) Halogen lamp | |
| MONOCHROMATOR | Czerny-Turner with 600 lines/mm ruled Diffaction Grating |
| DETECTOR | Photo Diode |
| READOUT | 3½ digit 7 segment LED of 12.7 mm height |
| READABILITY | 0.1% T 0.001 Abs 1 unit conc |
| DETECTOR | Photodiode |
| POWER REQUIREMENT | 230 V ± 10%,50 Hz, 10 Max. 60 VA |
| PHYSICAL DIMENSION | Size (W x D x H ) in mm Weight in kg 410 x 315 x 135 Approx. 9 |
| ACCESSORIES SUPPLIED With Instruments At extra Cost | |
| QUALITY STANDARD | ISO 9001 CE |
Additional Information:
- Item Code: SL-171
Digital Spectrophotometer
- Views: 194
-
Science International - Product Code: SL-171
- Availability: In Stock
