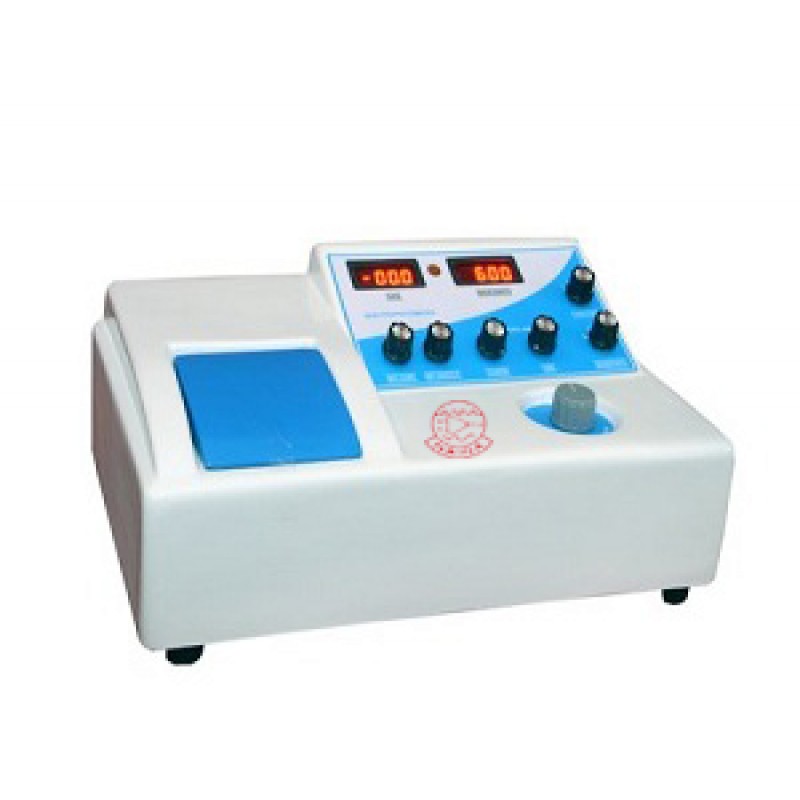

DIGITAL SPECTROPHOTOMETER NSP365
Product Details :
Digital Spectrophotometer NSP 365 are the most economical, reliable, rugged and accurate instrument for spectro photometric analysis of any concentration. Digital Spectrophotometer operates at a wavelength range of 340 nm to 960 nm. The output is available on a 3 ½ digit red seven segment LED display in terms of %Transmission (%T), Absorbance (Abs.), and Concentration (Conc.). This is useful instrument for Chemistry Labs, Pharmaceutical Industries, Colleges and University Labs etc.
Features :
- Range 340 To 960 nm
- Wavelength Resolution 1 nm
- Highly Stable & Accurate
- Direct Concentration Facility
- Dual Digital Display For Wavelength & Data
- 10 mm & 50 mm Path Length
Product Details:
Parameter | Data |
Wave length Range | 340 - 960 nm |
Photometric Range | % T : 0 to 100. Absorbance : 0 to 1.999. Concentration : 0 to 1999. |
Resolution | 0.1 %T, & 0.001 Abs, Concentration: 1 |
Detector | Silicon Photodiode |
Mono - Chromator | 600 Lines/mm grating. |
Sample Holder | 10mm glass Cuvettes (50mm, 100mm Optional at extra cost) |
Light Source | Light Source: 6V, 1 Amp, Tungsten Halogen Lamp |
Operating Temperature | 5°to 45°C |
Display | 3 ½ digit LED for results, 3 digit display for wavelength |
Path Length | 10mm |
Spectral Bandwidth | 5nm |
Repeatability | ±2 nm |
Wavelength accuracy | ±2.5 nm |
Wavelength resolution | 1 nm |
Power Supply | 230V ± 10%AC 50 Hz |
Size (LXBXH) & Weight | 480x290x180 mm : 8.0kgs (approx) |
Accessories | cuvette(2 with 10mm Dia.), Dust Cover, Instruction manual. |
