Prominent & Leading Wholesale Trader from Ghaziabad, we offer 104 micro controller based vis. spectrophotometer, 105 digital spectrophotometer, 168 visible double beam spectrophotometer, 106 micro controller based vis. spectrophotometer with 2 position sample holder, 166 micro controller based vis. spectrophotometer and 167 visiscan spectrophotometer with 2 position sample holder.
Product Details:
Minimum Order Quantity | 1 Piece |
---|---|
Wavelength Range | 340 to 960 nm |
Model | 104 |
Application | Laboratory Use, Industrial Use |
Detector | Wide Range Silicon Photodiode |
Weight | 6.5 Kg (Approx) |
Wavelength Accuracy | +/-5 nm |
Brand | Systronics |
Wavelength Display | Dial |
Spectral Bandwidth | 10 nm |
Photometric Accuracy | +/-0.005 Abs at 1.000 Abs |
Photometric Resolution | 0.1%T,0.001 Abs |
Photometric Readout | 4 digit Seven Segment LED |
Grating | 600 lines/mm |
Source | Tungsten halogen lamp |
Sample Holder | Single position 10 mm cuvette holder |
Min Sample Volume | 1 ml in 4 ml cuvette |
Power | 230V,+/-10%,50Hz |
Dimension | W420xD310xH125 mm |
Accessories | Two Glass Cuvettes |
Optional Accessories | Single Position 20/50 m |

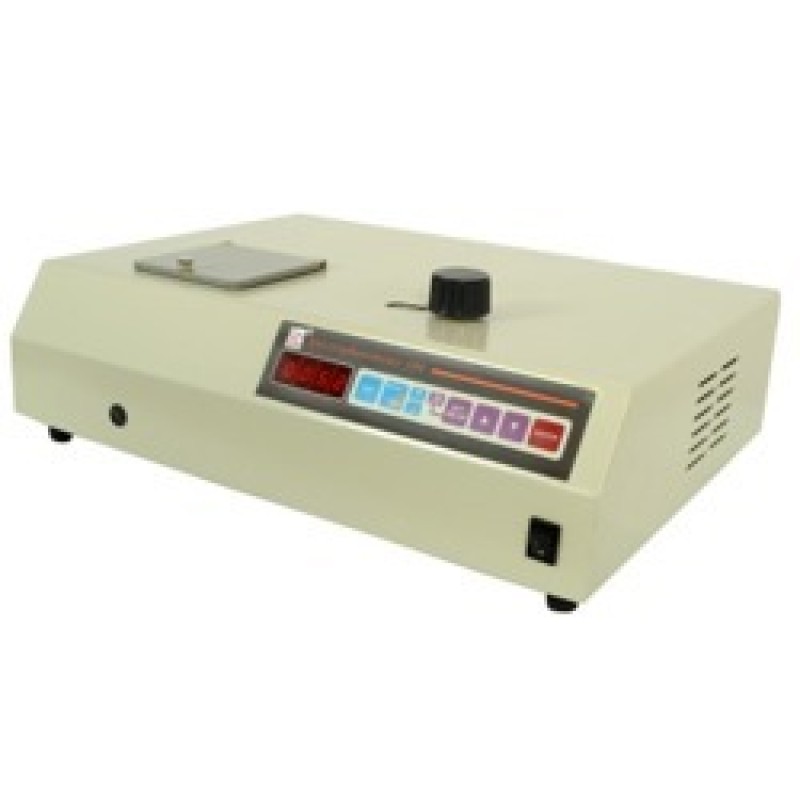

SYSTRONICS VISIBLE SPECTRO 104 sets new standards in accuracy and reliability. Wide spectral coverage and high resolution is achieved by using a powerful light source and a grating-based monochromator. A conveniently placed control enables the user to quickly orient the grating to provide monochromatic light of desired wavelength.
The electronic processing circuits and power supplies are solid-state / LSI-based to ensure high accuracy, stability and long life.
Measuring Modes:
Auto
%Transmittance
Absorbance
Cocentration
Additional Information:
Item Code: 104
Delivery Time: 1-2 week
