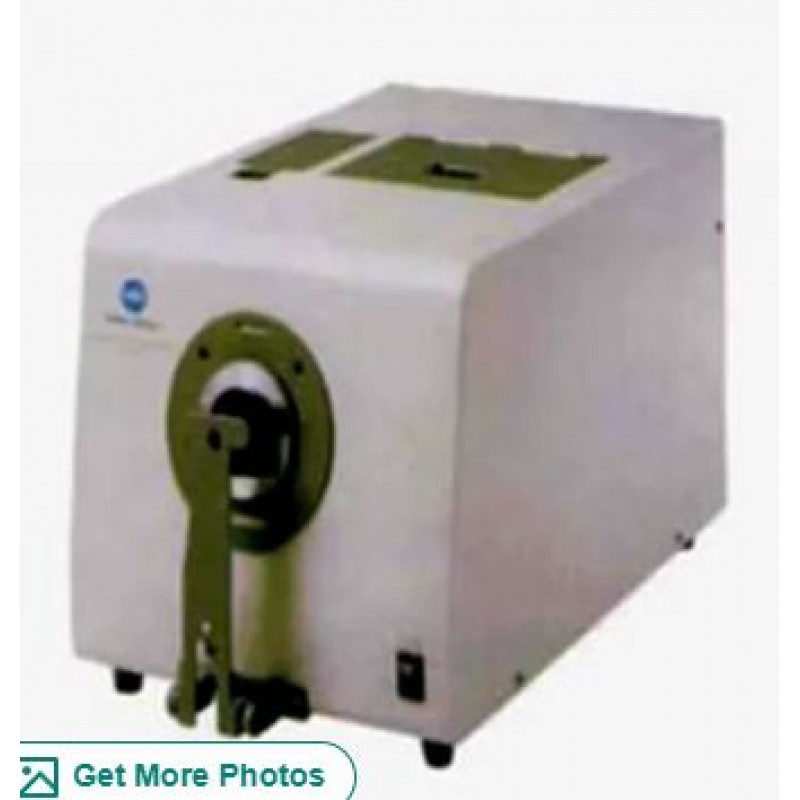

Spectrophotometer
Product Details:

Wavelength Range	360-740nm
Photometric Range	0-200%
Lamp Type	Xenon Lamp
Integrating Sphere Size	152 mm
Operating Temperature	0-40 degree C
Country of Origin	Made in India

Leveraging on the vast industry experience, we have been able to offer the clients Spectrophotometer. Our range is manufactured using superior quality raw material and latest instruments. Before the final dispatch, these products go under rigorous examining by our quality auditors to ensure an error free range. Moreover, these meters can be availed in various sizes and grades from us.

Specifications:

Enables measurement of reflecting colors equipped with simultaneous measurement of SCI/SCE
Conforms to CIE No: 15, ISO 7724/1
ASTM 1164, DIN 5033 Teil and JIS Z8722
Condition C standard
Transmittance D/0 conforms
To CIE No: 15 ASTM 1164 and DIN 5033 Teil7 standard
Diffraction grating
Wavelength range: 360-740mm, 1
Wavelength pitch: 10mm, reflectance range: 0-200%
Resolution: 0-01%
Sphere size: Ø152 mm, xenon lamps (X4)
LAV - Ø25.4 mm / Ø30 mm, MAV: Ø8 mm / Ø11 mm
SAV - Ø4 mm / Ø7 mm
View finder design for easy sample viewing
Numerical UV control for calibration and measurement
Fast, instantaneous numerical UV adjusted enables UV included soft-flash mode to avoid triplet absorption
Repeatability: spectral reflectance: standard deviation within 0.1%
Calorimetric values: standard deviation within DE ab 0.02
Inter instrumental agreement: mean DE*ab O.15 (SCI) based on 12 BCRA series II color tiles
Compared to values measured with master body
Temperature dependence: spectral reflectance: within ±O.10%/C
Color difference: within DE*ab 0-05/C
Storage temperature/humidity range 0 to 40°C, less than 80% RH (at 33 with no condensation)
Altitude 200m or below installation category: 1 pollution 2°
Accessories provided with above instruments
Transmittance specimen holder CM-A96
Cell CM-A98 (10 mm)
