Soxhlet Extraction

Introduction:

• Mantle Type
• Waterbath Type
• Hot Plate Type

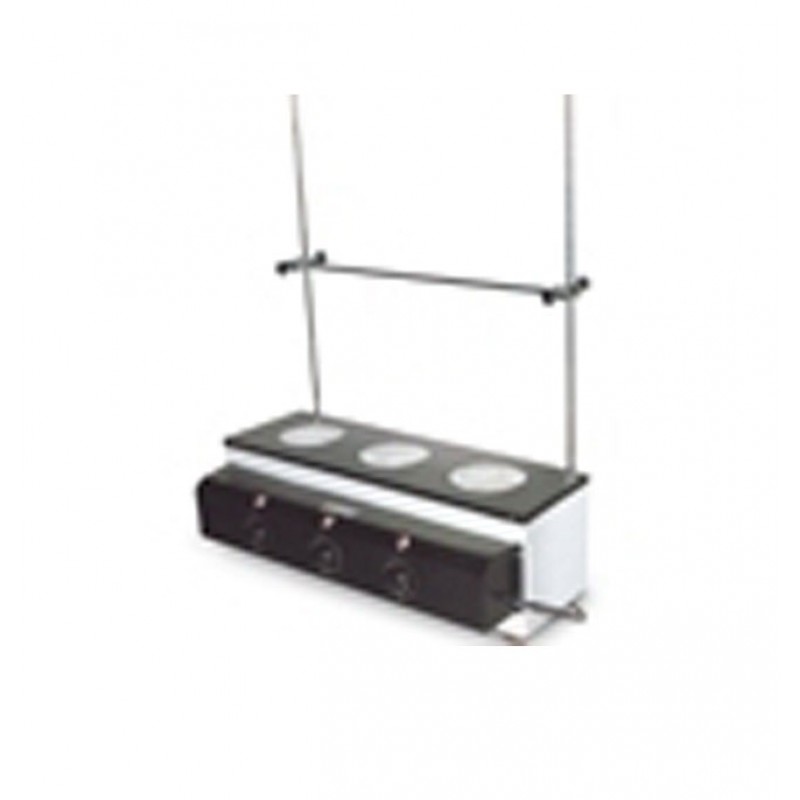

EIE-912,Soxhlet Extraction Heater : Mantle Type :

This apparatus is suitable to heat Soxhlet flasks The heating element is attached to fiber glass yarn-knitted fabric to provide flexible support to bottom of the flask. Glass wool insulation is used below the elements in the housing which is phosphated and powder coated attractively. In the event of spillage the solvent will either evaporate or escape through the drainage hole below each element. The housing has two retort rods and a cross bar on which the extraction apparatus has a built-in regulator which controls the heaters. The heating elements have individual on/off switches and a pilot lamp to indicate working of the elements. The apparatus requires a 230 Volts AC single phase supply. Without glass parts and clamps.

EIE-913, Soxhlet Extraction Heater : Water Bath Type :

Double walled, inner stainless steel. The lid having 6 holes of 10 cm dia, provided with concentric rings and supplied with two straight rods and adjustable horizontal rod, electrically heated. Thermostatic control. Supplied without glass parts, clamps, boss heads.

Same as above but completely made of stainless steel.

EIE-911, Soxhlet Extraction Heater : Hot Plate Type :

Hot plate dia about 41/2" mounted on a metal base. Provided with two adjustable cross rods but with out glass parts and clamps. Hot plates made of aluminum.

• With ind. ON/OFF switch
• With ind. Energy regulator
• With one energy regulator and ON/OFF Switch.
