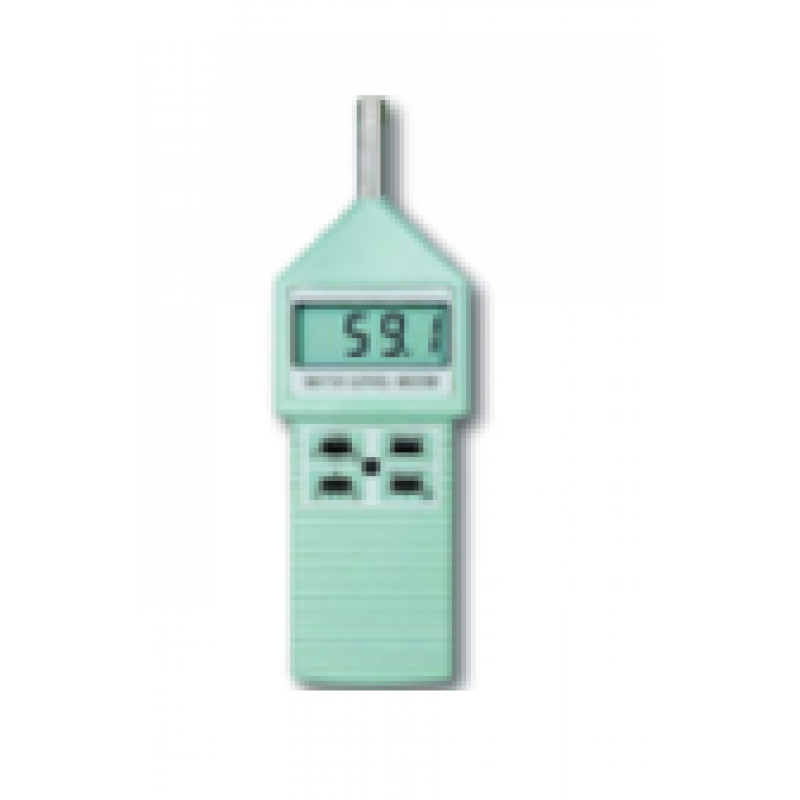

Sound Level Meter

This is an industrial grade instrument essential for measuring noise and sound pressure levels in a standardized way. Our real time sound level meter or tester is a handheld device and covers all possible requirements from level checks to in-depth analysis. This sound meter meets all industry standards and features all essentials needed to perform high precision sound measurement in environmental, occupational and automotive industrial application areas such as horn noise sound level and sound frequency. With light weight design, large LCD display, durable housing and clear read-out even in bright ambient light condition etc. this instrument is the most suitable sound pressure level meter (SPL Meter) available on the market today.

Features
Durable and light weight design	A & C weighting networks meet standards
Time weighting (FAST & SLOW) dynamic characteristic modes	Build in adj. VR is available for easy calibration
Condenser microphone for high accuracy & long-term stability	Warning indicator for over and under load
Clear read-out even in bright ambient light condition	Can be used to measure horn sound level

Specifications
Model	PX-202
Range	3 ranges, 30 to 130 dB, input signal only
Resolution	0.1 dB
Frequency	31.5 Hz to 8,000 Hz
Microphone	Electric condenser microphone
Size of microphone	1/2 inch standard size
Range selector	30 to 80 dB 50 to 100 dB 80 to 130 dB 50 dB on each step
Time weighting	Fast - t= 200 ms Slow - t = 500 ms
Calibration	Build in external calibration VR
Output Signal	AC output - AC 0.5 Vrms DC output - DC 0.3 to 1.3 VDC, 10 mV per dB
Power Supply	006P DC 9V battery
