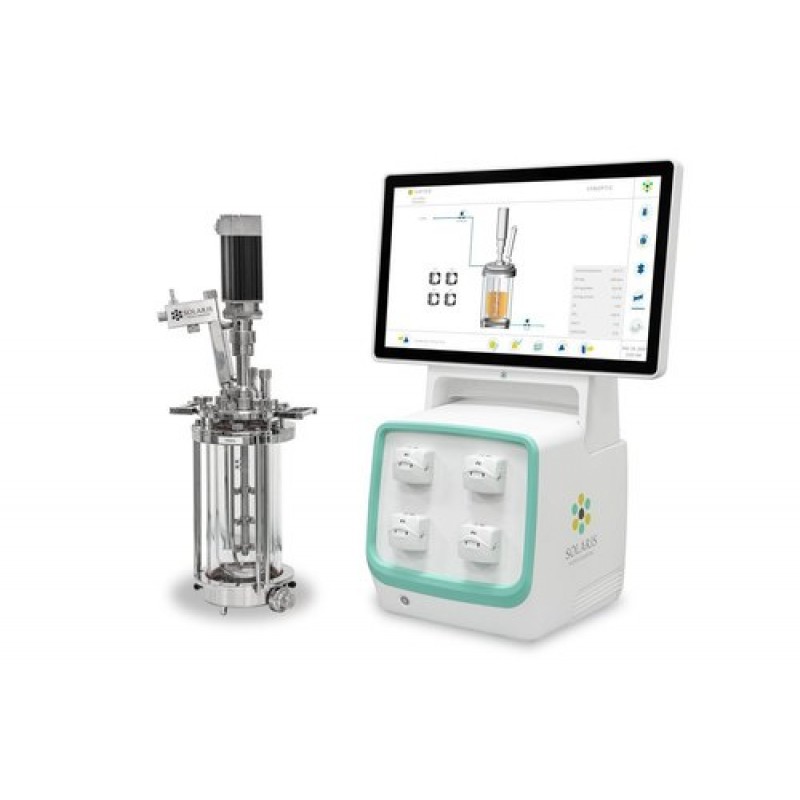

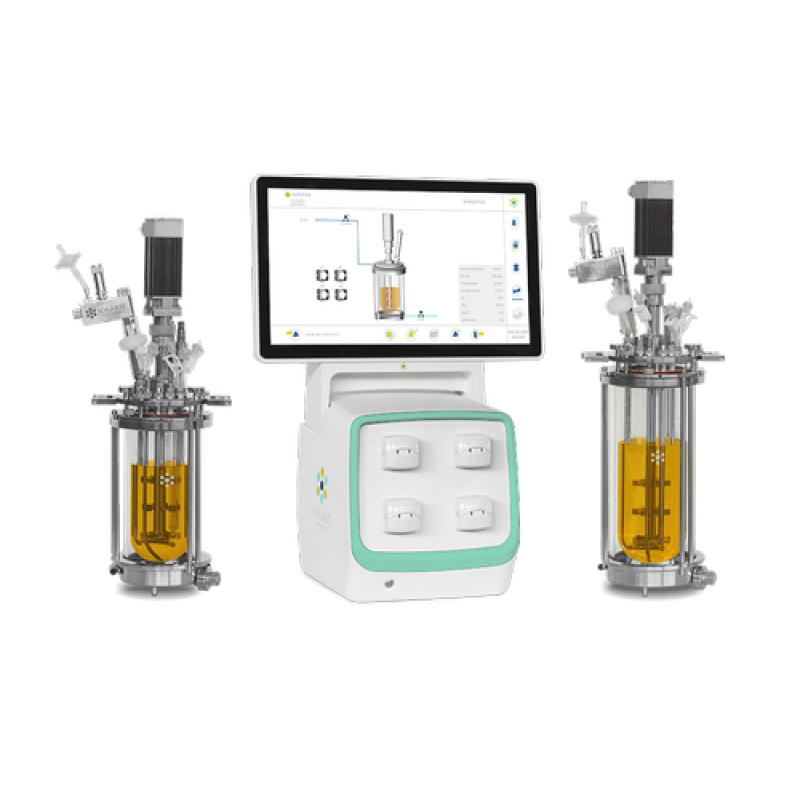

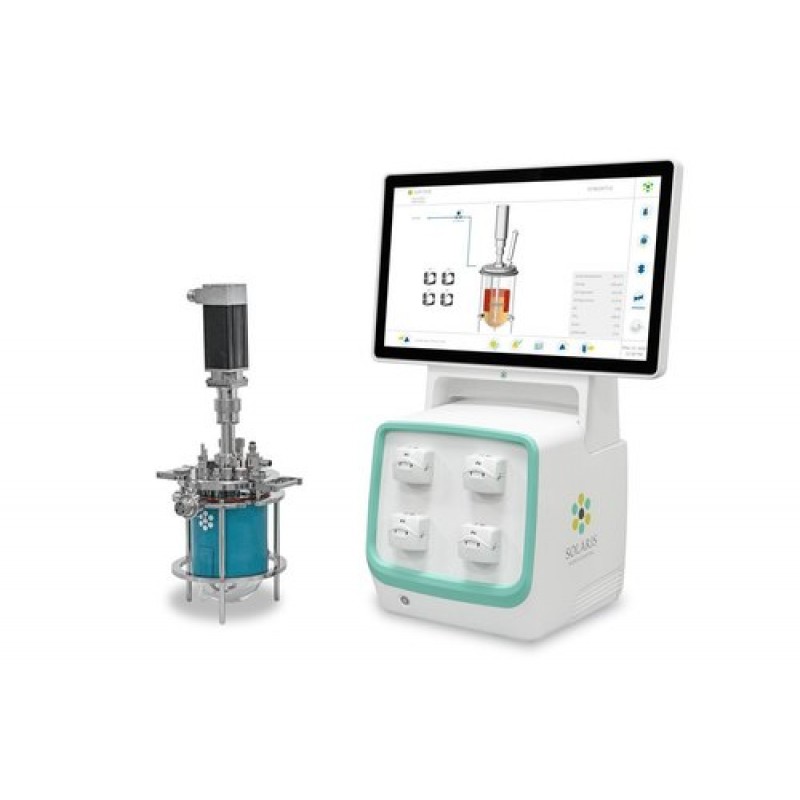

Solaris Biotechnology- Jupiter With Single & Parallel Autoclavable Stirred Mini-Fermenter/Bioreactor

Product Details :

Solaris JUPITER Features and Benefits :

• 5 different volumes (2 L, 4 L, 6.5 L, 8 L, 10 L) and 2 different ratios H/D.
• Jacketed and single-wall borosilicate glass vessel designs available for all volumes.
• Microbial (Toro sparger, Rushton impellers, baffles) and cell cultures (Sintered sparger, Marine impellers, baffles caps) configurations available.
• Wide range of measurement and control options, including temperature, pH, dO 2 , dCO 2 , redox, antifoam, level, conductivity, weight, cell density (total cells, viable cells).
• Modbus digital sensors reduce background noise and guarantee quick response time.
• Suitable for batch, fed-batch and continuous processes.
• Powerful and accurate (1 RPM) brushless motor.
• Optional integration up to 4 analog input/output connections, choosing between 0-10 V and 0-20 mA/4-20 mA (e.g. pumps or valves with power supply independent from Solaris electrical cabinet)
• Different gas mixing strategies with up to 5 TMFC and/or solenoid valves.
• Jacketed design: fully removable and cleanable glass jacket for improved heat transfer during autoclaving.
• Single-wall design: thermoregulation performed with heating blanket and cooling finger.
• Pressure control up to 1.6 bar (with constant gas-in and gas-out flux) available in the 2 and 4 L volumes with jacketed design.

Solaris JUPITER Software:

• Innovative SCADA software LEONARDO3.0: a smart and user-friendly controller designed to provide a high level of automated management of the fermentation/cultivation processes.
• Full version included in the equipment supply.
• Up to 24 units managed in parallel with a unique HMI (24”).
• Data extraction in .csv format.
• Remote access via PC, tablet or smartphone, with QR code scanning or dedicated portal.
• Remote control for after sale assistance.
