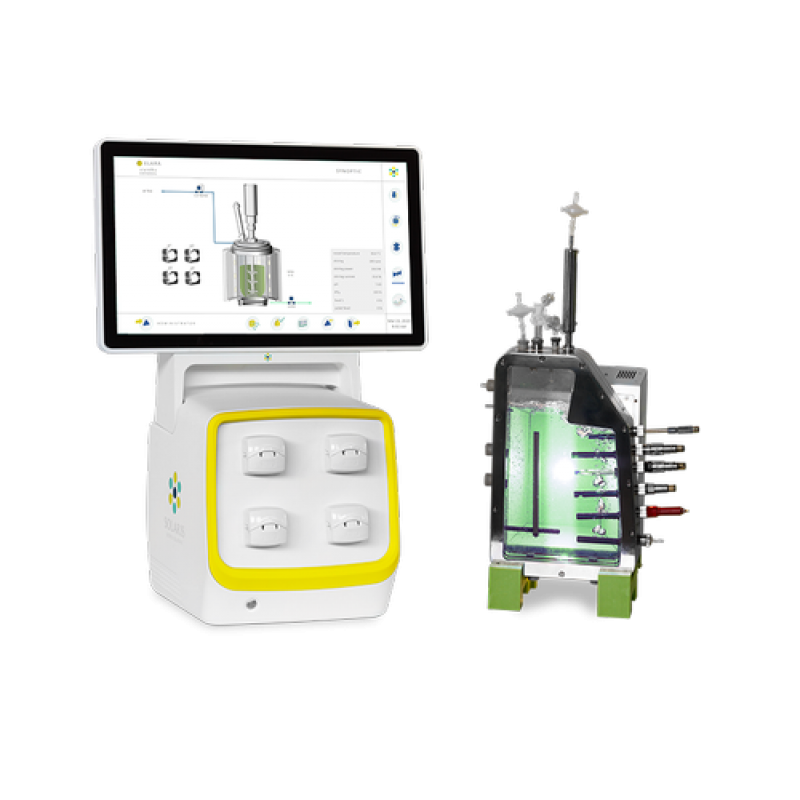

Solaris Biotechnology - Elara Flat With Single & Parallel Autoclavable Flat Photobioreactor

Product Details :

• ELARA Flat is the innovative solution for microalgae cultures.
• Its flat design with the minimum thickness allows a homogeneous light distribution even at high viscosity, and its asymmetrical shape prevents foam formation.

Solaris ELARA FLAT Features and Benefits

• 1.6 L total volume, 2.5:1 H/D ratio.
• Parts in contact with the culture are made in borosilicate glass and Super duplex SAF 2507, which is highly resistant to salty water.
• Gentle mix performed through airlift, which prevents damages to cell membrane and ensures an efficient homogenization.

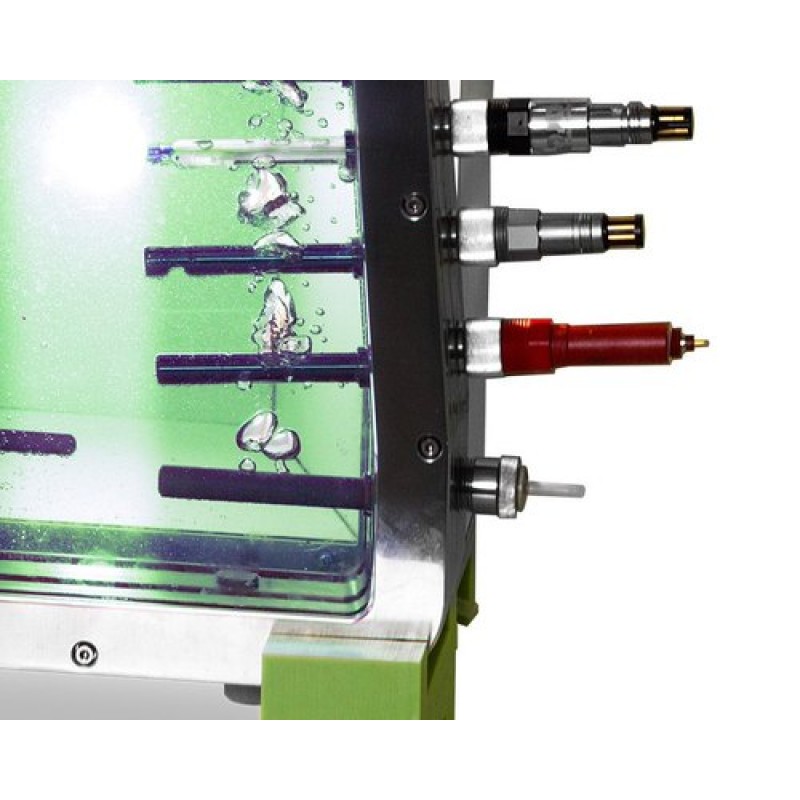

• Wide range of measurement and control options, including temperature, pH, dO 2 , dCO 2 , redox, antifoam, level, conductivity, weight, cell density (viable cells).
• Modbus digital sensors reduce background noise and guarantee quick response time.
• Suitable for batch, fed-batch and continuous processes.
• Optional integration of up to 4 analog input/output connections, choosing between 0-10 V and 0-20 mA/4-20 mA (e.g. pumps or valves with power supply independent from Solaris electrical cabinet).
• Different gas mixing strategies with up to 5 TMFC and/or solenoid valves.
• Light module consisting of n.4 cool white LED with colour temperature of 4000K.
• LED power 230 W; LED brightness: 27000 lm at 25 °C.
• Light distribution: 4000 PAR at 10 cm from the lamp surface.
• Automatic and manual control of light intensity and circadian cycle simulation.
• The light spectrum is selectable, and the light intensity is dimmable from 0-100% up to 3000 μmol(photon)/m2.

Solaris ELARA FLAT Software

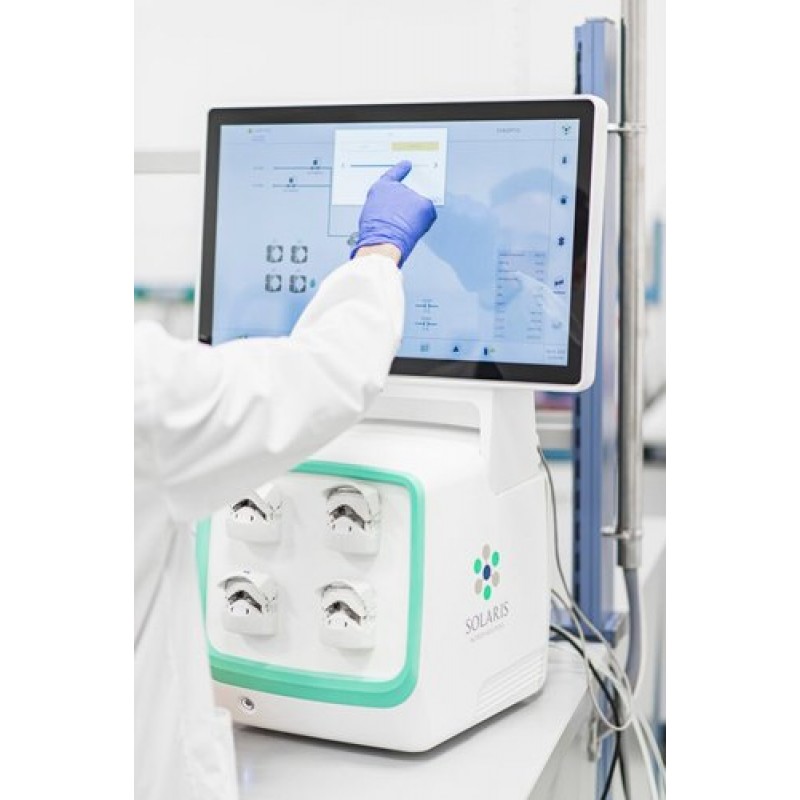

• Innovative SCADA software??? ???LEONARDO??? ???3.0???: a smart and user-friendly controller designed to provide a high level of automated management of the fermentation/cultivation processes.
• Full version included in the equipment supply.
• Up to 24 units managed in parallel with a unique HMI (???24”).
• Data extraction in .csv format.
• Remote access via PC, tablet or smartphone, with QR code scanning
