Smart Differential Pressure Transmitter
Product Details:

Brand	Electronet
Electrical Connection	M20 or Half Inch NPT or Half Inch BSP or Three Forth ET
Turn Down Ratio	1001
Supply	12.5 to 45 VDC
Filling Liquid	Silicon Oil or Insert
Thermal Effect	Range Code 4 to 8, refer datasheet
Warranty	1 year manufacturing warranty
Product Weight	Approx 3.4 KG
Response Time	150 MS
Net Weight	Approx 3.4 Kg
Display	128 X 64 mm COG Display
Enclosure Rating	Die cast Al or SS316
Ingress Protection	IP67

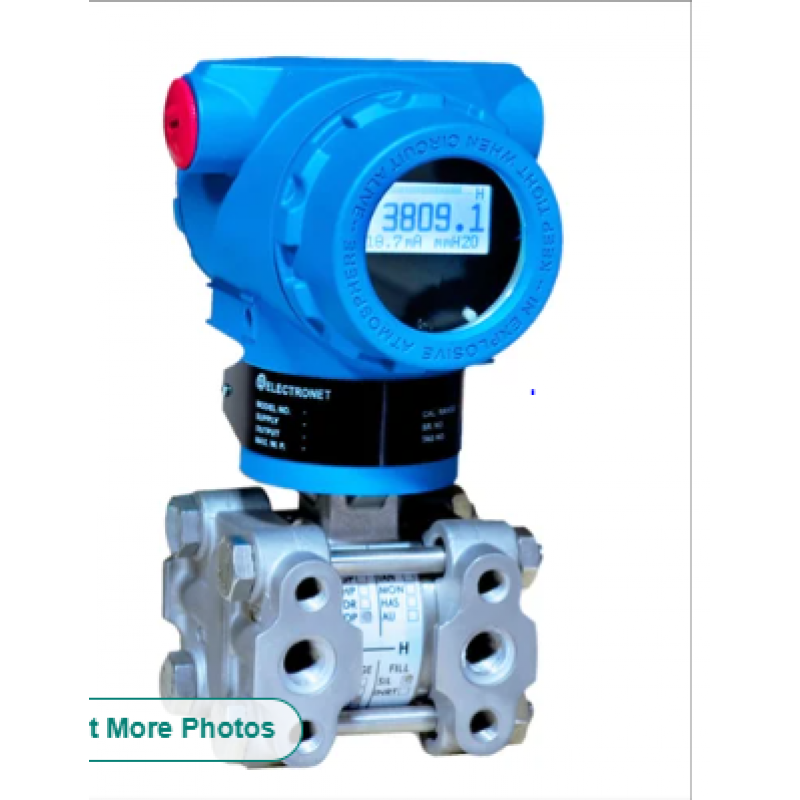

Electronet series ELPRT-100SDP is a micro-controller based design which has capacitive type pressure sensing element.
It is Suitable for Differential Pressure measurements. ELPRT100SDP is used for various industrial applications. It can be used for Liquid, Gas and Vapor pressure measurements.
It is having wide ranges of pressure with high accuracy and linearity output in the form of electrical signal 4-20 mA DC with HART communication.
