Skin Analysis System

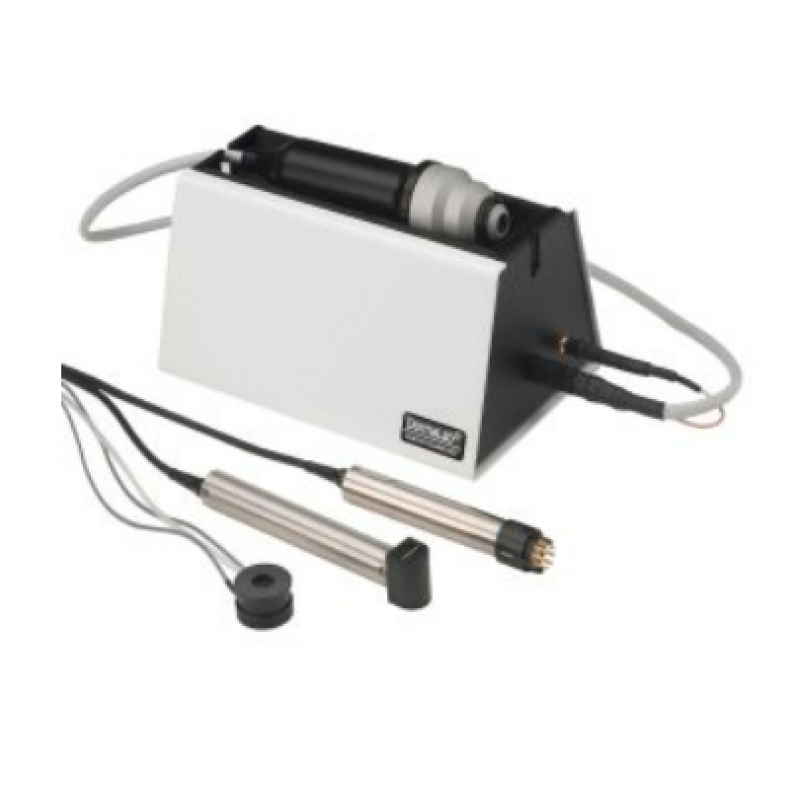

The DermaLab Combo consists of the following parts:

• Measurement Probes
• Interface Unit
• Tablet PC



The DermaLab Combo has several optional probes with each one capable of measuring a different parameter of skin. These probes can be connected to the multi-channel interface unit by means of the I/O interfaces at the backside of the panel. The interface unit in turn wirelessly communicates with the tablet PC with a bright, vibrant display. This tablet runs on the Windows OS and has the DermaLab Combo application software preinstalled.

The LabView-based software is intuitive and easy to operate. Operators require no prior technical expertise to start working with this system. After a suitable probe is attached to the interface unit, the system will be ready for measurement. On analysis of a volunteer, the corresponding image and readings automatically appear on the tablet screen. The measured readings are represented in standardised SI units.

The tablet PC is equipped with an option for USB storage for saving recorded data. The tablet can also wirelessly communicate with a printer for instantly printing copies of the images and values observed. Since most organisations use the DermaLab Combo for research purposes, they find the need for an option to export the recorded data for further analysis. For such applications, the DermaLab Combo software has an Excel export feature. With the single click of a button, all the stored data can be transferred on to an Excel sheet.
