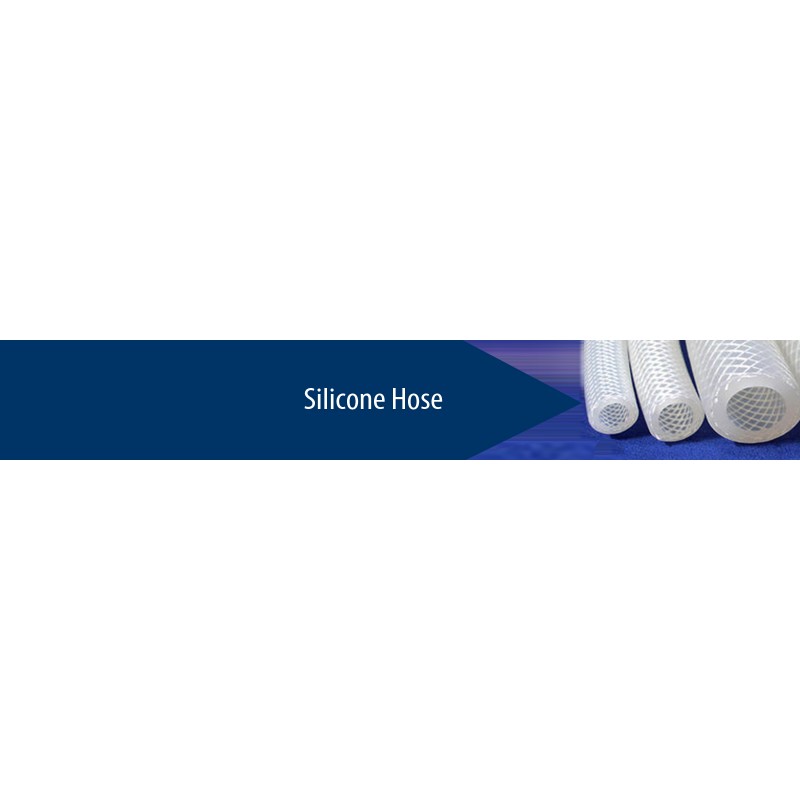

Silicone Hose
Product Details:
Hydromac Hydraulics Platinum-cured silicone hose is internally reinforced with polyester yarn.
SUITABLE FOR :

• PHARMACEUTICAL
• BIO – MEDICAL
• COSMETICS
• FOOD AND BEAVARGES
  Fittings: Male, female, flanged, Triclover and fittings available in all the material.

SILICONE BR

SILICONE BRAIDED TRANSPARENT HOSE
ID MM	OD MM	Working Pressure BAR	BURST Pressure BAR	Minimum Bend Radius MM	VACUUM MM of Hg
13	23	10.5	42	50	760
16	25	10.5	42	65	760
20	29	10.5	42	65	760
25	36	10.5	42	90	760
38	48	10.5	42	100	760
50	61	8.5	35	150	760
63	74	8.5	35	280	760
76	86	7	28	350	700
101	117	3	12	400	600
