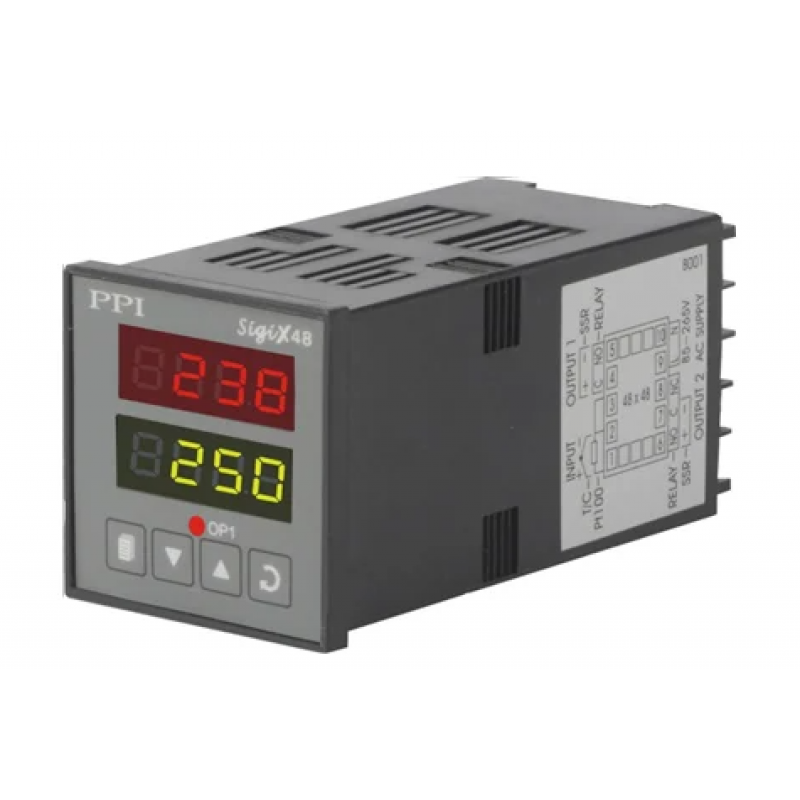

Sigix Temperature Controller

Model Name/Number	Sigix
Brand	PPI
Temperature Range	J (0 to 960 , R (0 to 1770) , S (0 to 1765 DegreeC) DegreeC) DegreeC) , R (-200 to 1375 DegreeC)
Usage/Application	Dual Display, Single Set-Point Temperature Controller
Accuracy	+-0.25% of reading +-1 DegreeC
Controller Function Type	ON-off
Type	Digital
Size	48*48 mm
Country of Origin	Made in India

Single Set Point On-Off / Time-Proportionating Temperature Controller

Features:

• Dual Row 4 Digit Display
• Input Versions : (1) RTD Pt100,   (2) J/K Thermocouple,  (3) R/S Thermocouple
• Programmable Control :  (1) On-Off  (2) Time-Proportionating (with Manual Reset)
• Programmable Hysteresis, Proportional Band & Cycle Time
• Programmable Heat / Cool Control Mode
• Output Versions : (1) Relay  (2) SSR
• Sizes (mm) :   48(H) X 48(W) X 85(D),72(H) X 72(W) X 65(D), 96(H) X 96(W) X 65(D)
