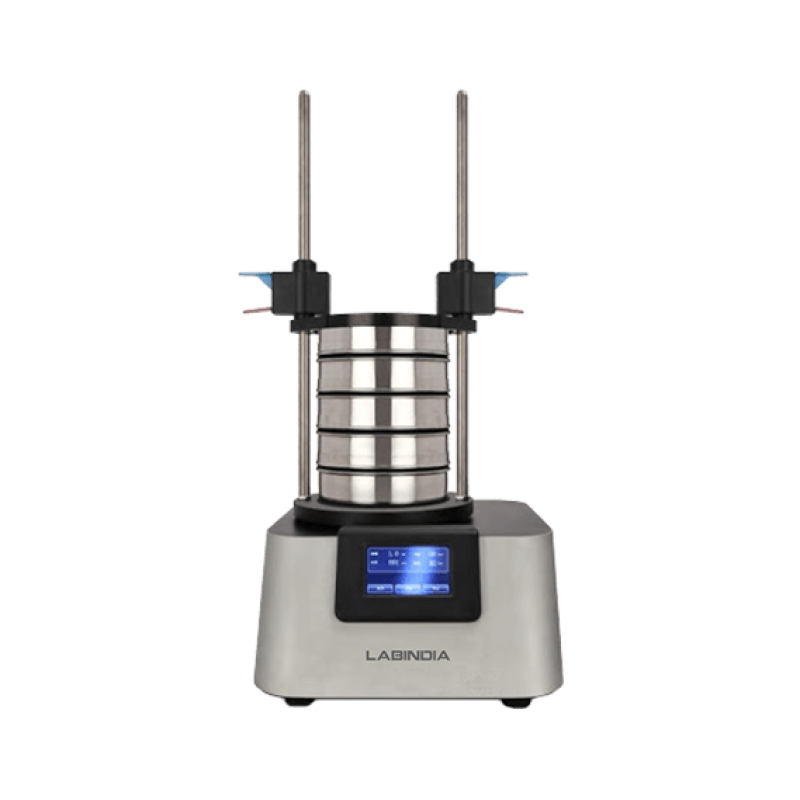

Vibratory Sieve Shaker

Product Details:
Vibratory Sieve Shaker VS1100 can be used for sieving any kind of inorganic and organic substances such as sand, rocks, clay, granite, feldspar, coal, soil, various powder, grains, seeds, and other solid particles. It is suitable for both dry & Wet samples.

• Separation, Fractioning, Particle size determination

• Electromagnetic Drive with unique sieving with 3D motion

• Built-In 5" Touchscreen Display

• Max. Feed capacity up to 3 Kg

• Measuring Range 20µm — 25mm

• Sieve Diameters 100/150/200/203 mm (8")

• 9 Standard Operating Procedures (SOPs) memory

• Digital amplitude setting range 0.2 to 3 mm

• Digital Sieving time operation setting 01 — 99min

• Continuous & Intermittent mode of operations

• Digital interval setting range 01--99 sec with Pause 01-9sec

• Max. Number of fractions 9/17 (200 or 203/100 mm Sieves)

• Test Sieves with Certificate 20µm — 25mm

• Option of Wet Sieving accessories

• Option of Smart Screening Software

• RS232 and Balance Interface
