Sieve Shaker (Gyratory Motorised)

Product Details :

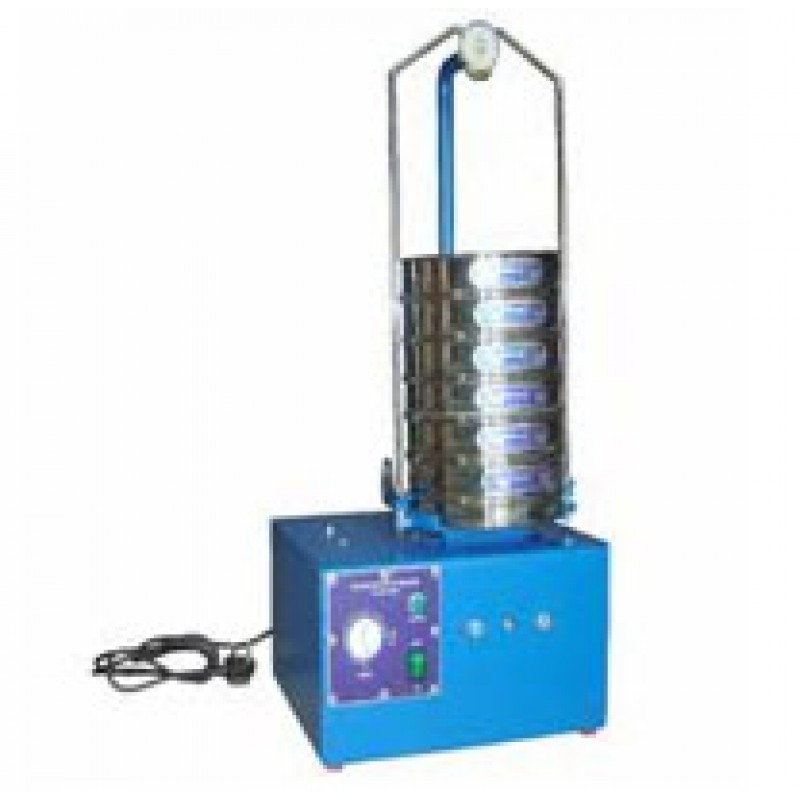

The Innovative Gyratory Motorised Sieve Shaker carries upto 7 sieves of 20 diameter. The shaker is driven by a ¼ h.p. electric motor through a reduction gear. The sieve table does not rotate but is inclined from the vertical axis and the direction changes progressively in the clockwise direction. By removal of a stop-pin fixed to below the table, the shaker can have a rotary motion. In addition to the gyratory motion of the table, there is an upward and downward movement ensuring that each square cm of the sieve is utilised. The whole gear mechanism runs in an oil bath.

Suitable for operation on 230 volts, 50 cycles, single phase, A.C. supply.  Supplied without sieves.

Optional Extras :

• Adaptor for 30 cm diameter sieves.
• Time switch, 0-60 mins in 5 min graduations.
