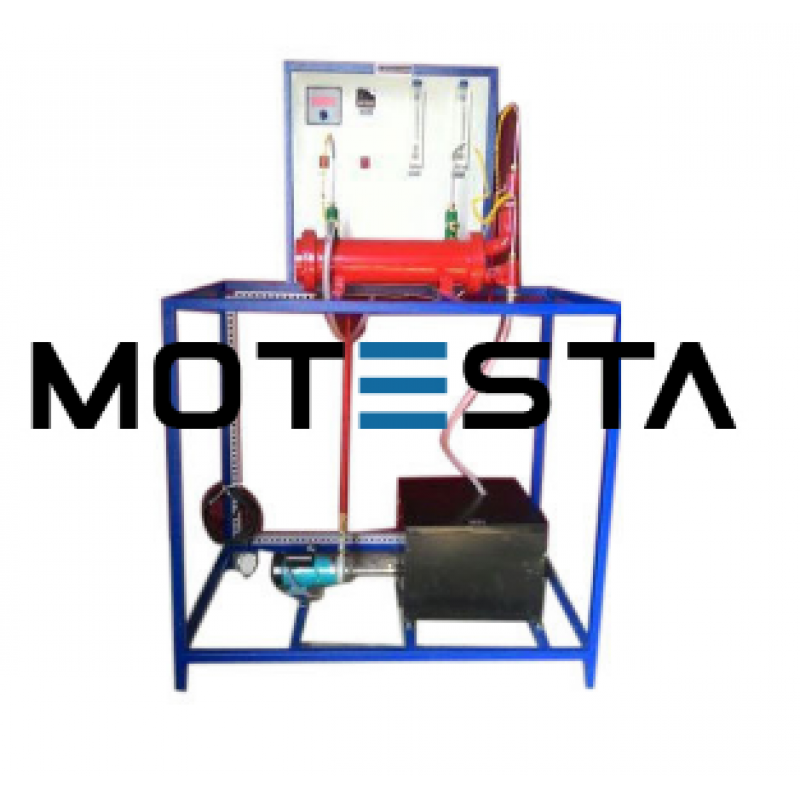

Shell and Tube Heat Exchanger

Control Panel

Stand Alone Metallic powder coated panel

Specimen

Shell: 200mm dia, 5mm thick, 1m long MS pipe
Tubes: ½” dia, 1020mm long Copper or seamless MS tubes

Insulation

Asbestos Cloth / Rope

Geyser

1 liter, 3 kW, Instantaneous (SS hot water tank with pump at extra cost)

Flow measurement

Measuring Jar with digital stop watch (Rota meters at extra cost).

Temperature Indicator

Digital Temperature Indicator ,0-199.9°C with TSS

Thermocouples

Teflon coated Cr -Al (K-type)-4 no.

Measuring Jar

Plastic-1000ml

Stop Watch

Digital, 1/10 of a second, Racer/Pacer Make

Experimental Capability

Over All Heat transfer Co-Efficient, Effectiveness

Manual

Self explanatory Instruction manual with sample calculation

Optional Feature @ Extra

Computerized data acquisition system with software
